Here are some photos to go along with the story of installing a Holley Sniper in #86
Show Newest Photos First | Show Oldest Photos First7 Photos - Page : [1]

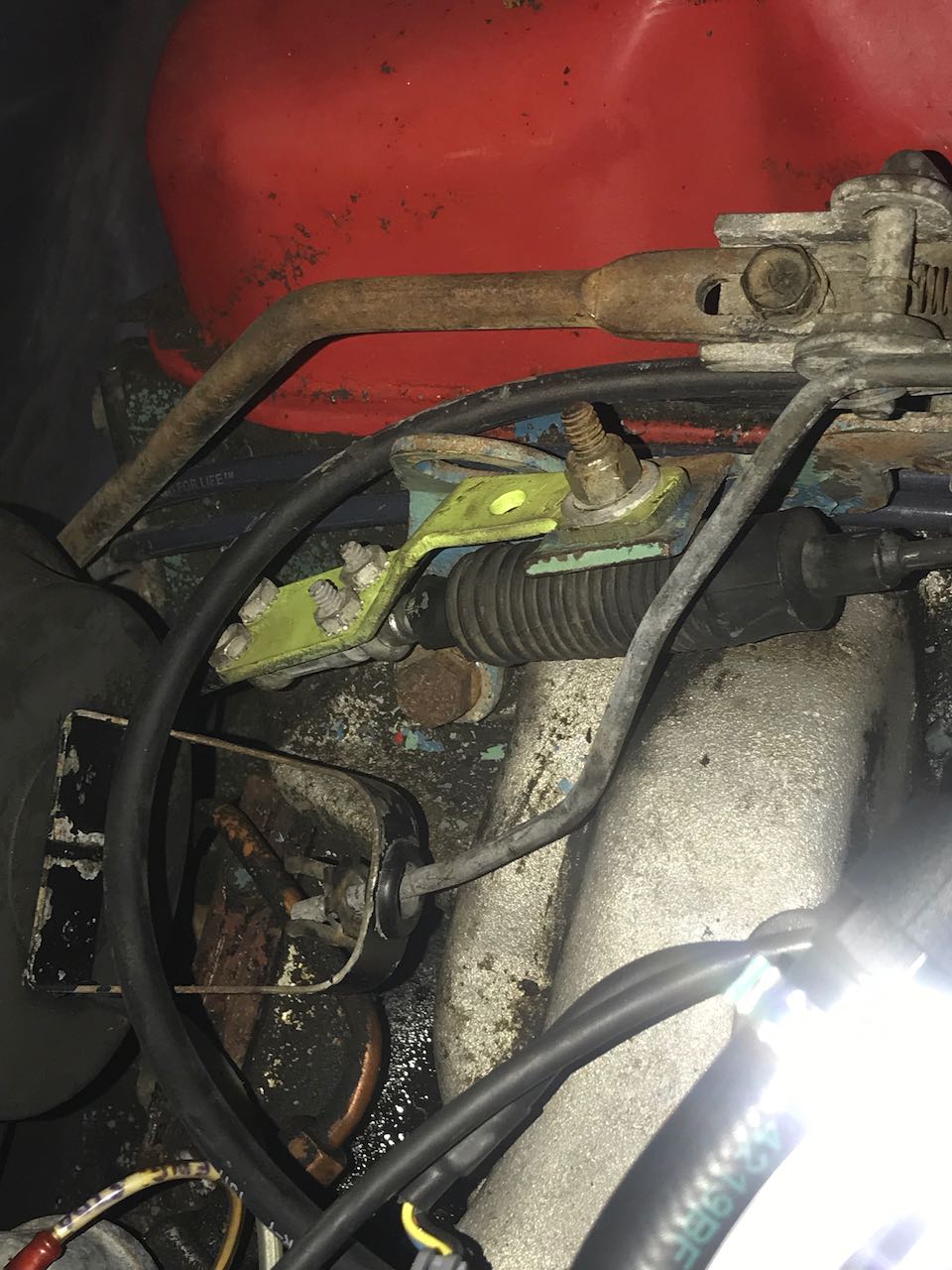

The old linkage

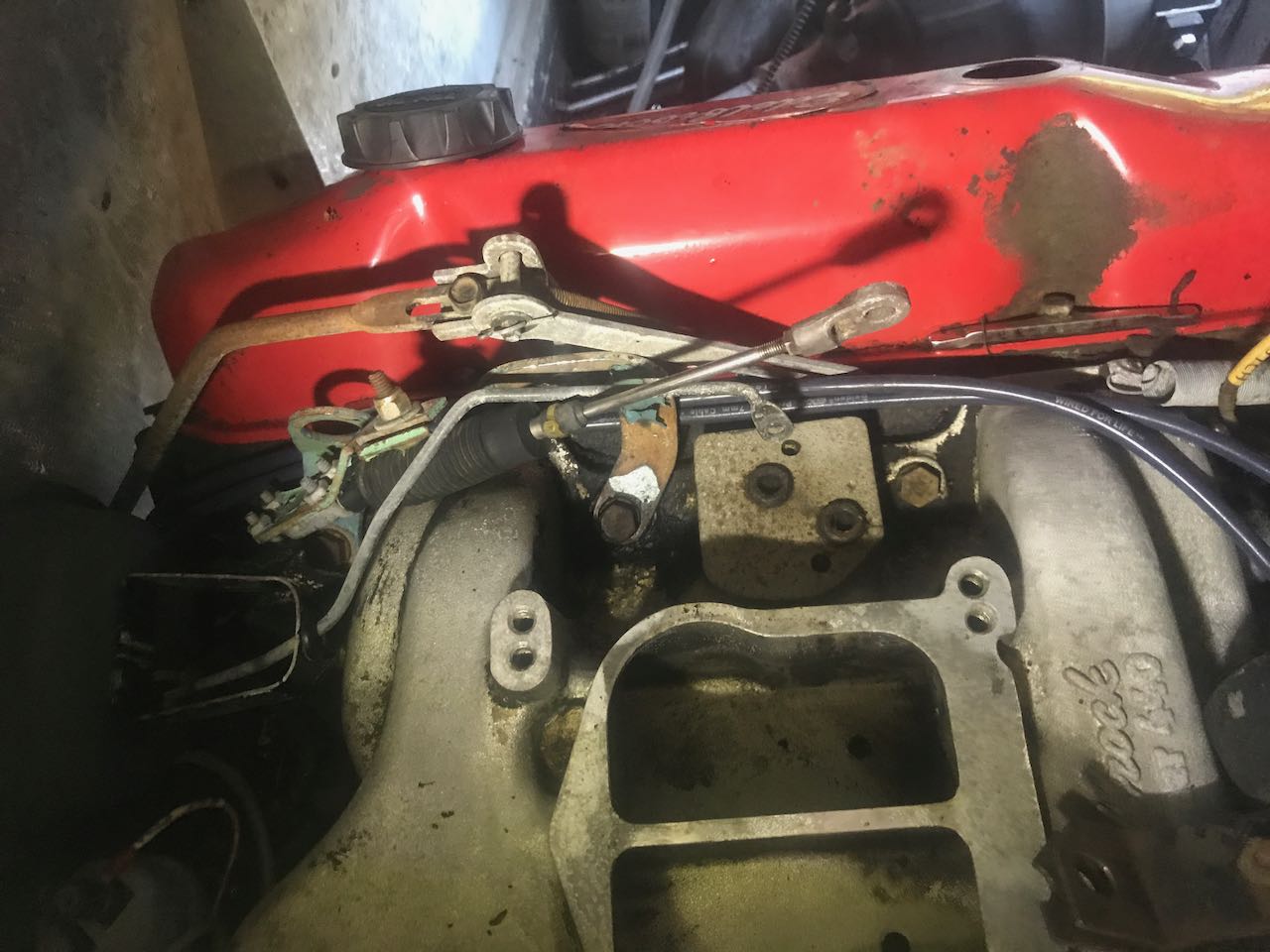

Another picture a bit close of old linkeage

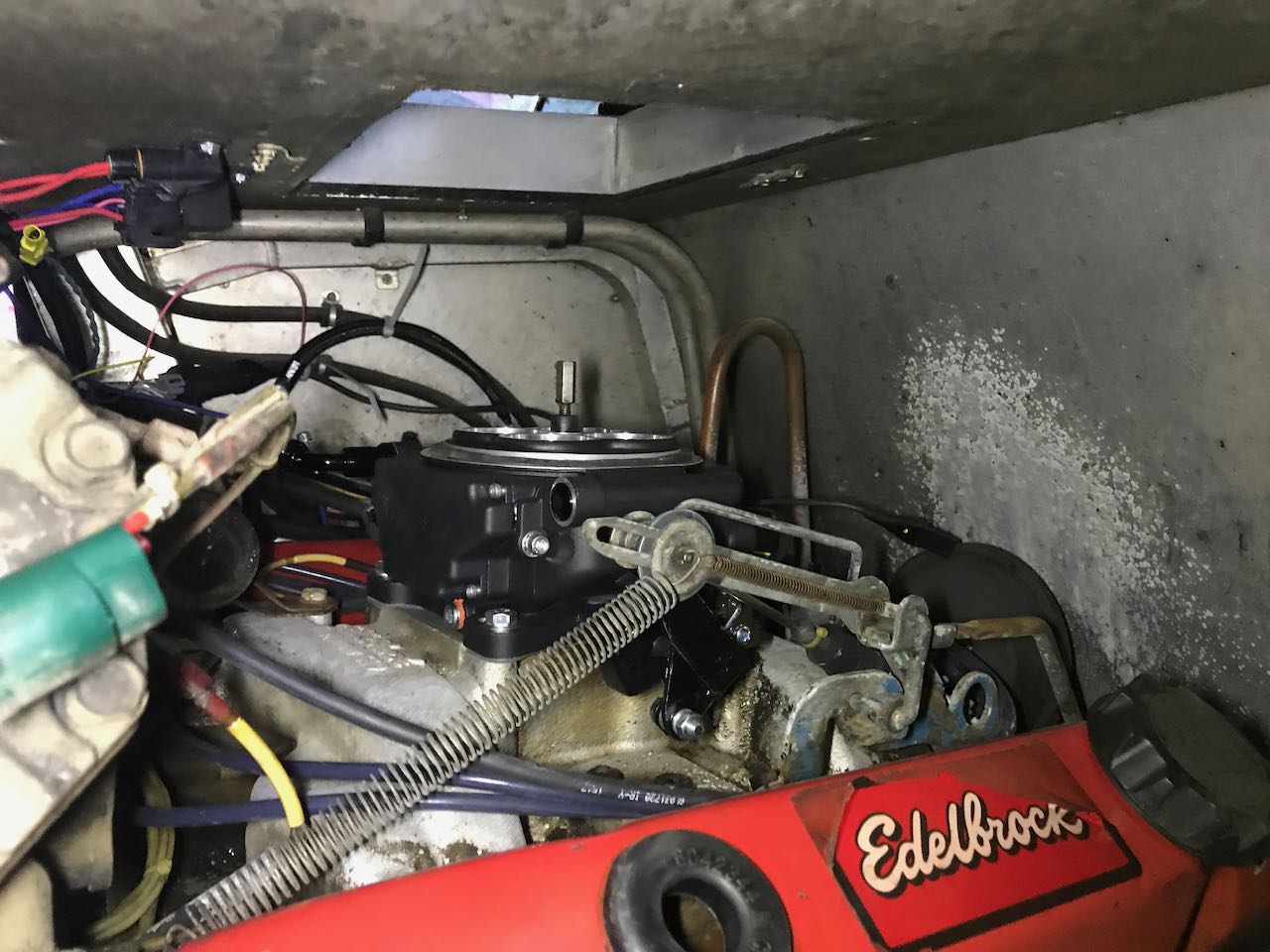

Side view of carb with fist update to linkage, but in the back you can see where I put my control wires.

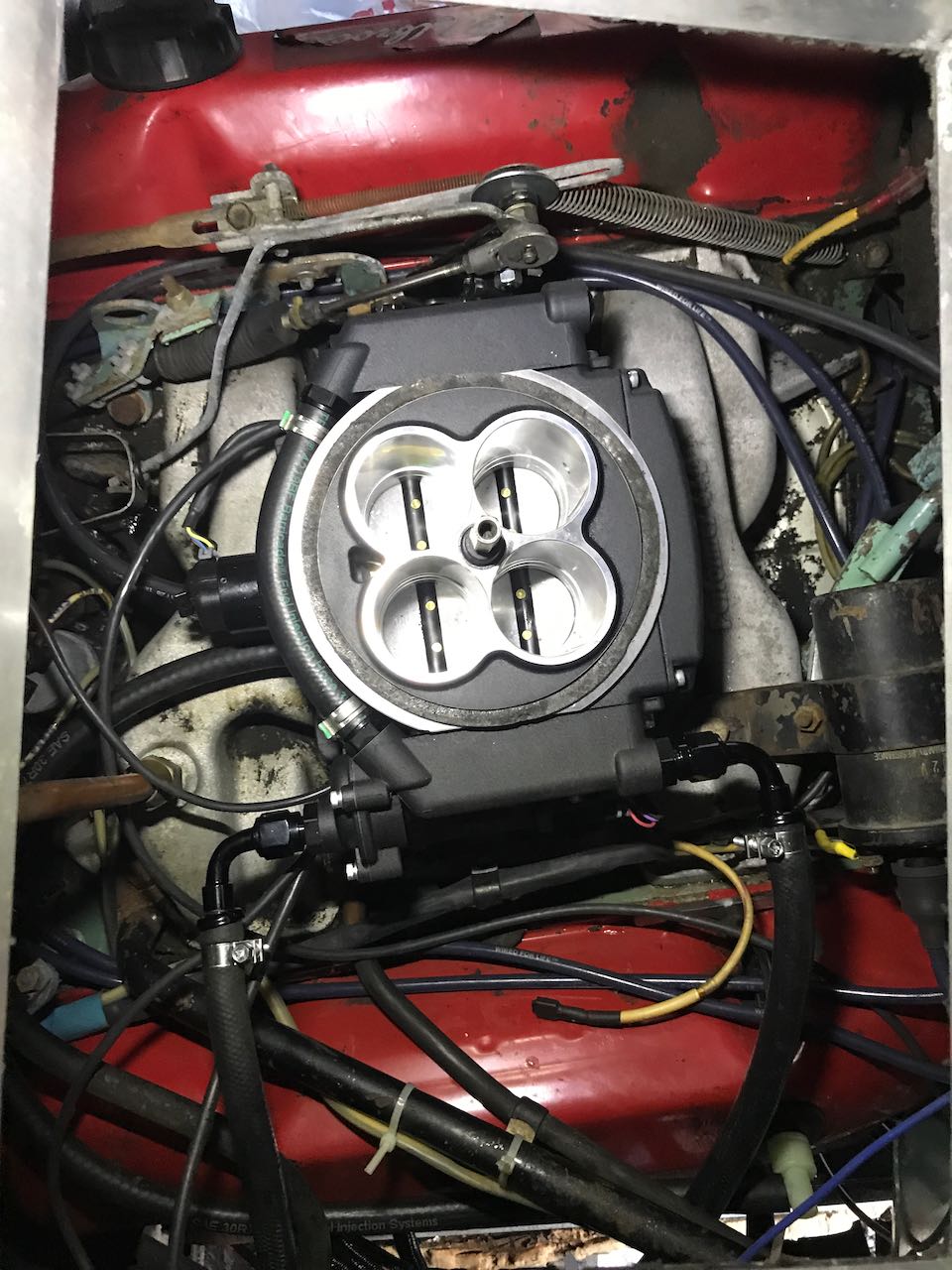

Top view with 1st gen linkage. Notice the 90 degree fuel connectors, made it a lot cleaner

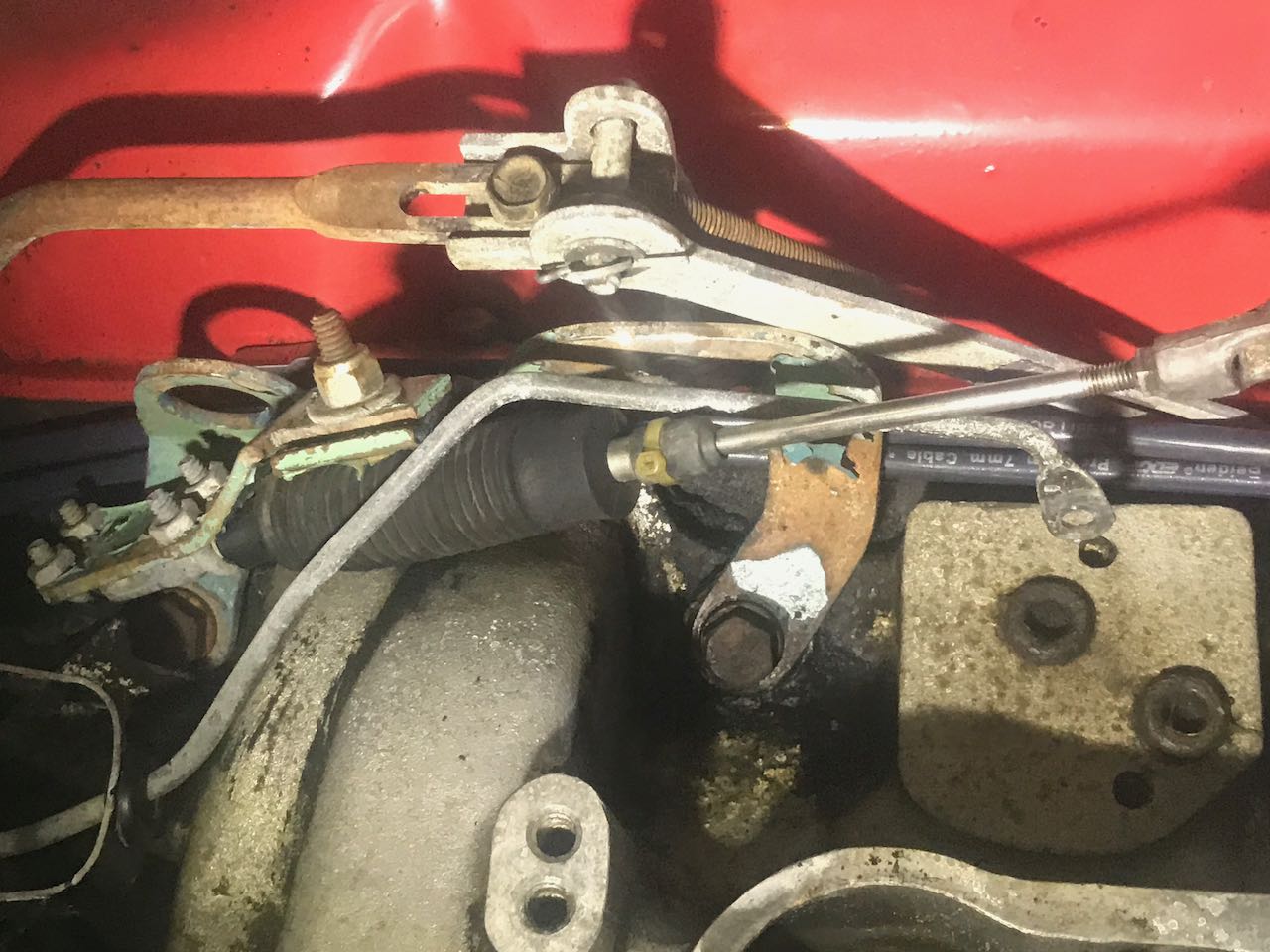

2nd Gen throttle cable holder. You can see how I welded a tip on and drilled a new hole to move the cable back down a bit.

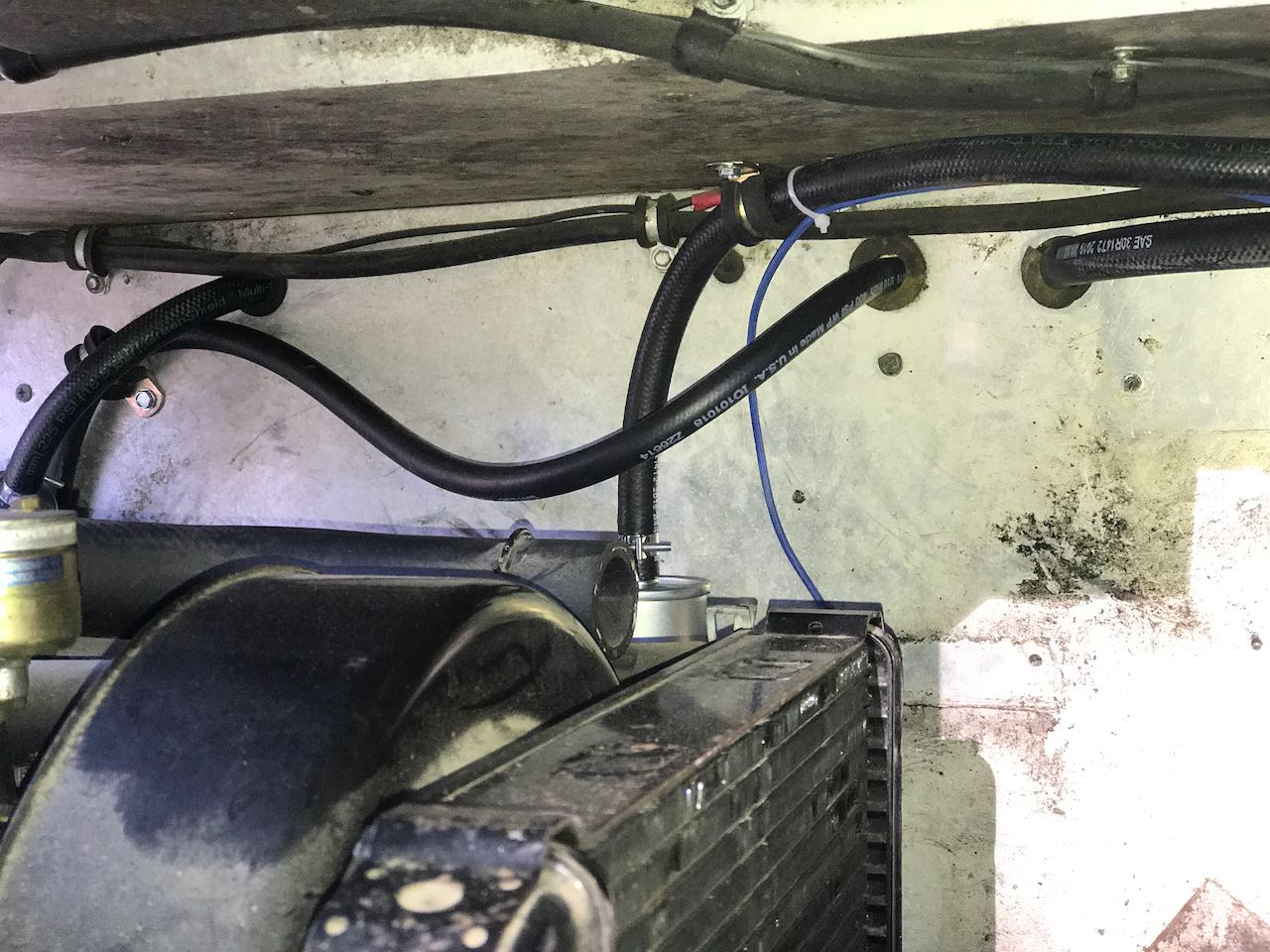

Fuel Line holes, from the far left is the Fuel out to Carb, second line is fuel to Generator, and third line is fuel return from carb. You can see the dirt behind left behind the old fuel pump

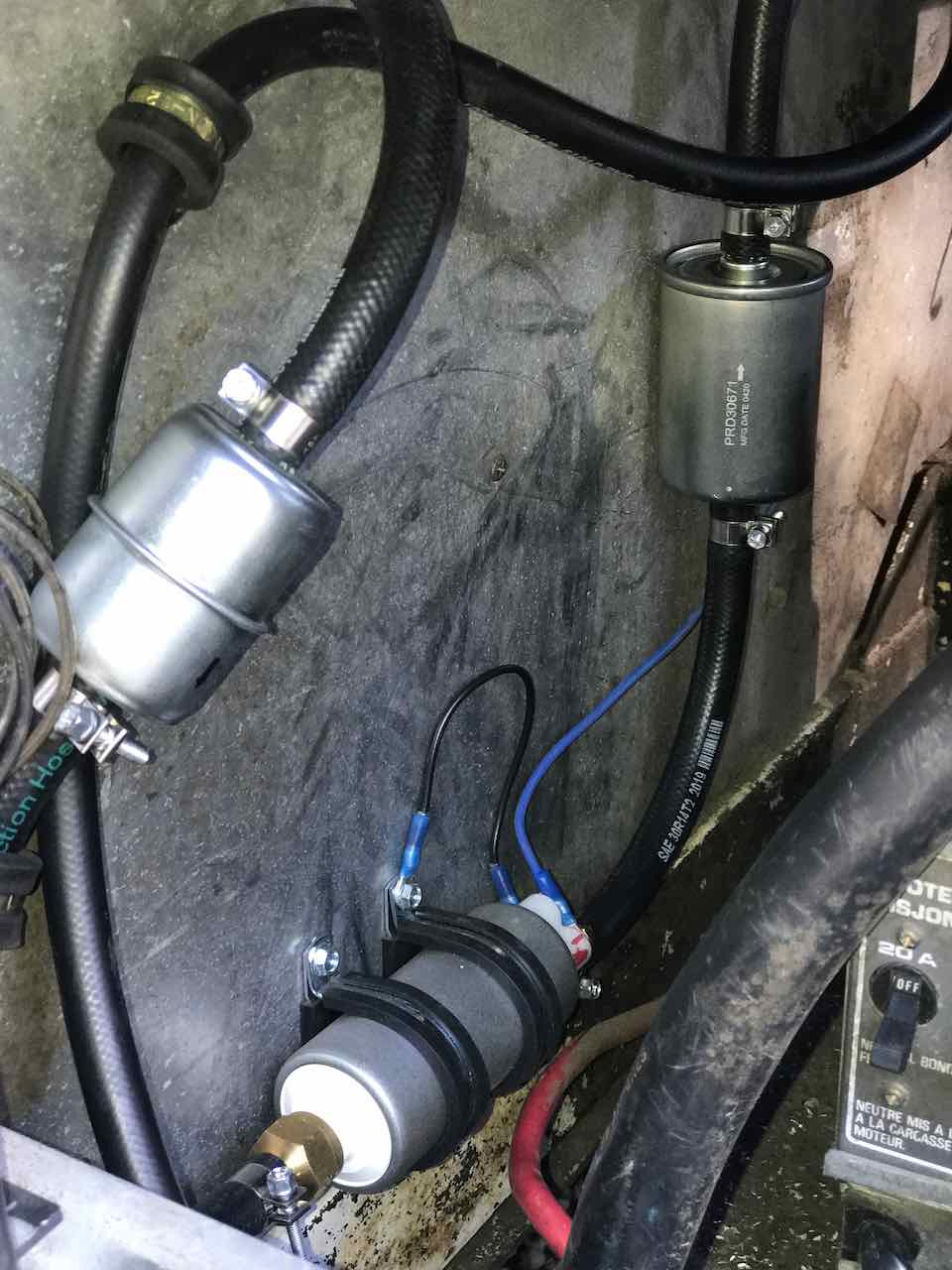

Fuel delivery run. First is the pre filter, at the bottom is the high pressure pump and going away is the post filter (10 micron I believe). THe fuel filter for the generator now sits along the inside frame rail.
