Brake Job and Redesign
Author: LCAC_Man (Show all albums)

standard brake job plus the addition of electric powered hydroboost system for the rear brakes
Show Newest Photos First | Show Oldest Photos First40 Photos - Page : [1] [2] [3] [4]

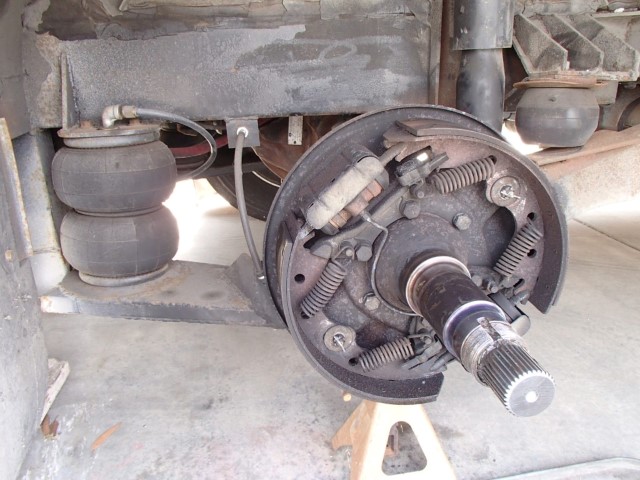

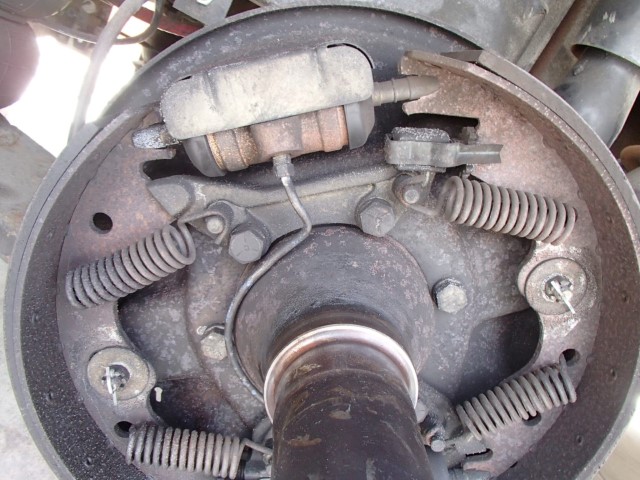

starting with the rear passenger side as it has the leaky lower wheel cylinder, upper cylinder appears to be much newer

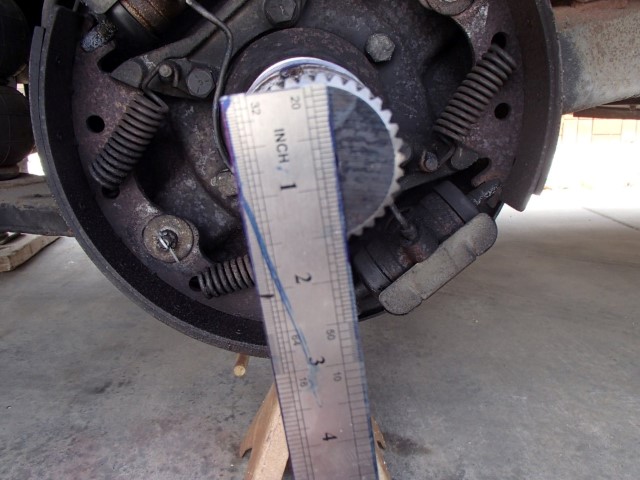

back plate bolt patter is 6 on 6", center hole diameter is 5"

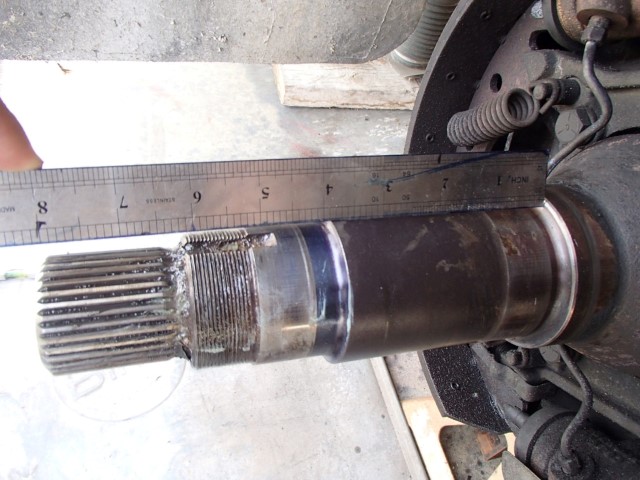

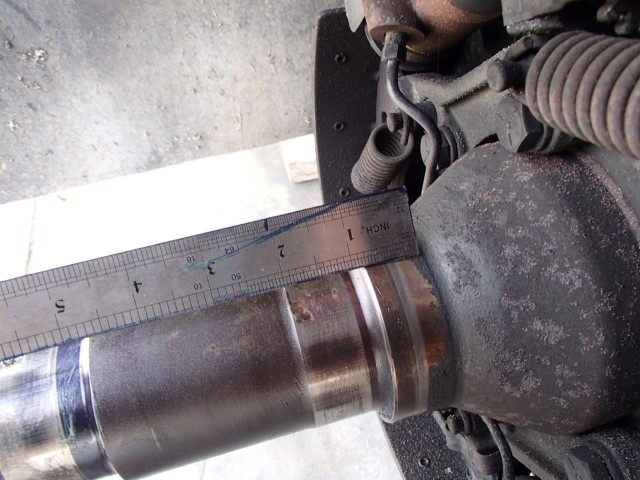

spindle lengths: rear seal shoulder(RSS) to axle end- 8 1/8" RSS to spindle end- 6 1/8" RSS to outer bearing shoulder 3 7/8"


rear seal land width 7/8" inner to outer bearing center to center width 4 1/8" total spindle/axle to backside of backplate length 11 3/4"


axle shaft diameter 1.5" axle spline count 34 inner bearing spindle dia. 2.623" outer bearing spindle dia. 2.250"

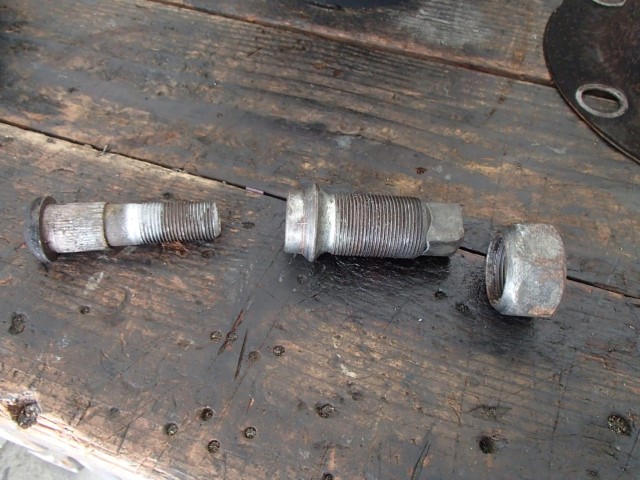

rear lug and stud adapter set up for alcoas

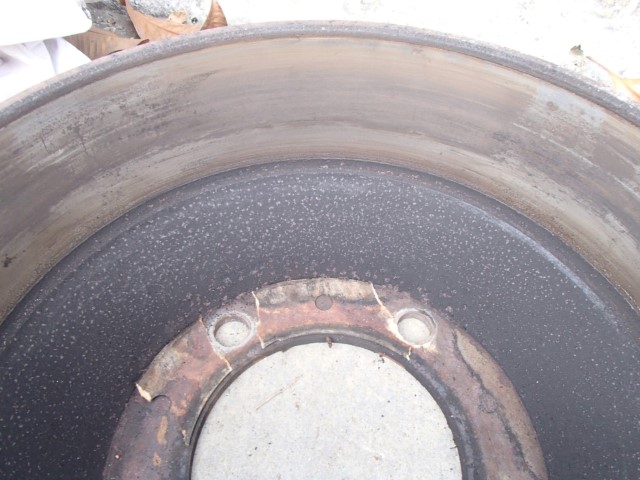

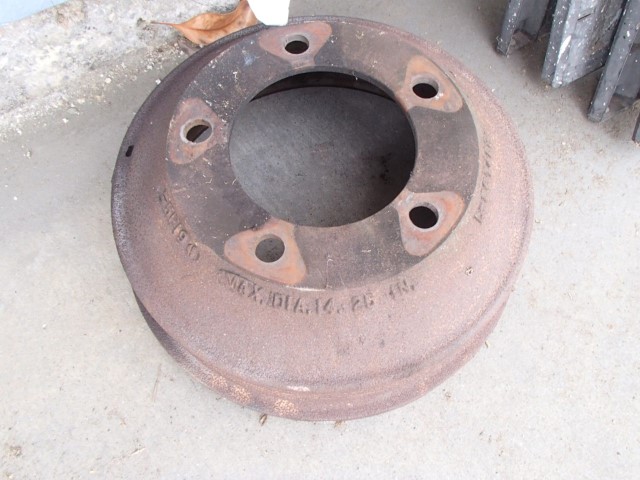

drum was actually in great shape, I could have just had it turned (appears to have never been turned before) as it has no heavy gouging. Drum outer diameter widest 16 3/8"


just a quick turn to knock off the glaze is all that would be needed


(2 Comments)

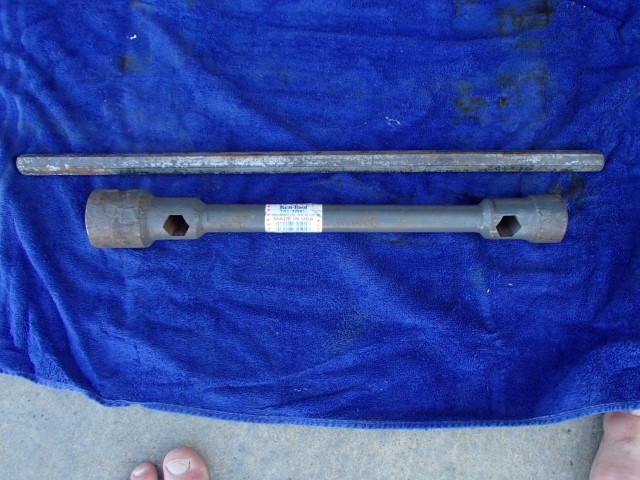

lug tools that came with my coach when I bought it, they seam very specific to this application

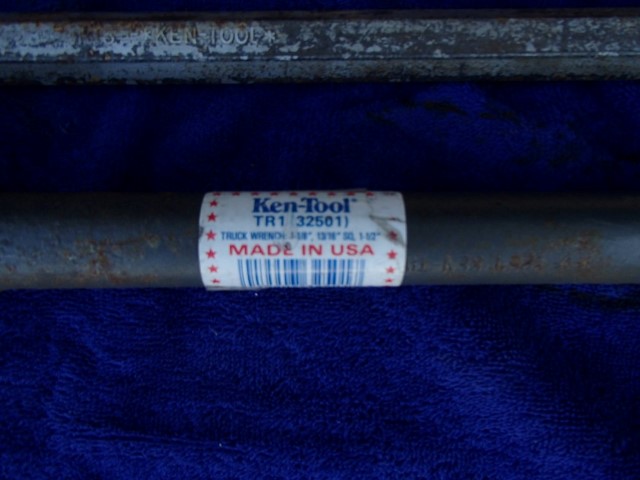

p/n 32501 for the wrench and 32318 for the handle, about $60 total on amazon

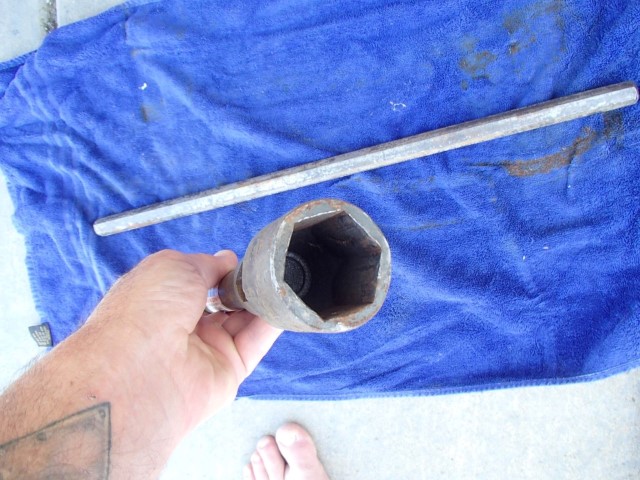

contains square drive for the stud adapter

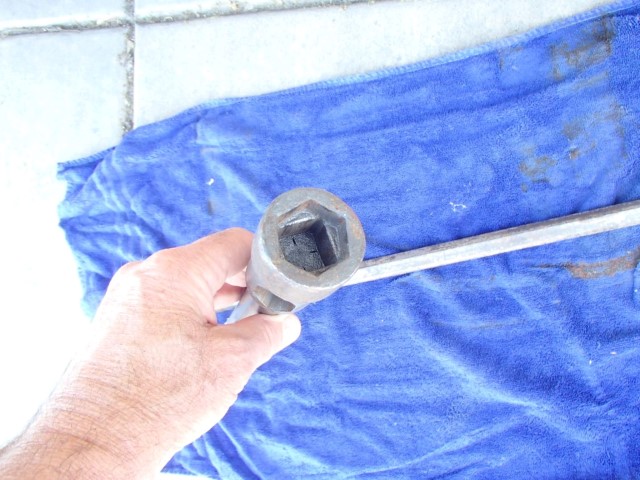

standard lug nut size on this end
