LCAC_Man #1027 LBZ Duramax Conversion
Author: LCAC_Man (Show all albums)

This album will cover the Duramax/Allison conversion(including dash cluster integration), installation of airbags to assist suspension, conversion of vacuum brakes to Hydroboost, replacement of Onan gas generator with a Onan/Cummins 5500LP, inverter/charger installation, dual roof a/c installation, and Bedroom reconfiguration that will add "pass-thru" storage.
Show Newest Photos First | Show Oldest Photos First461 Photos - Page : [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27] [28] [29] [30] [31] [32] [33] [34] [35] [36] [37] [38] [39]

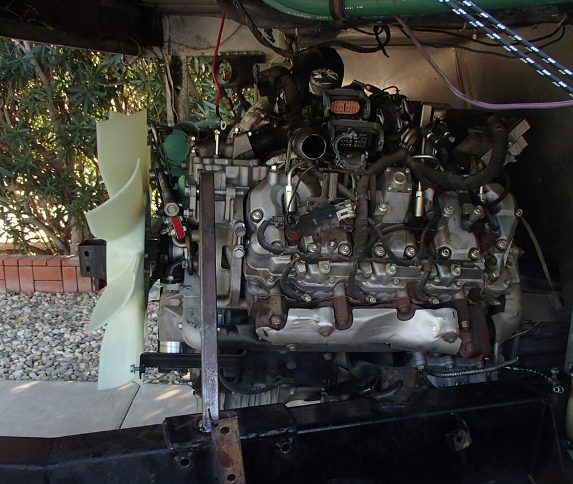

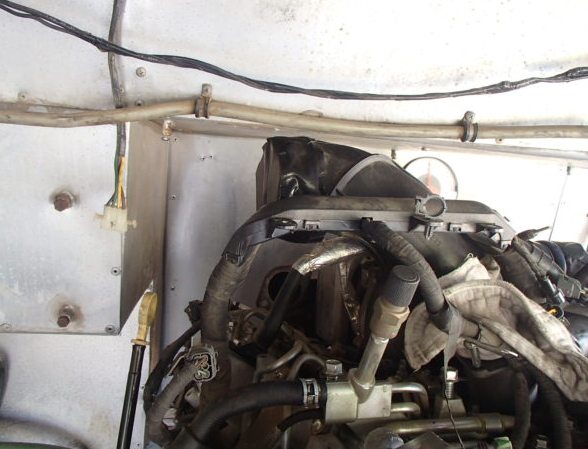

as high as I could go and still clear the intake duct

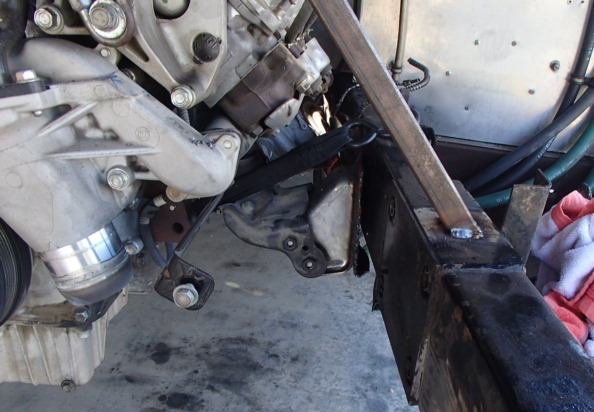

passenger side factory mount tower that will be used with the new cross member

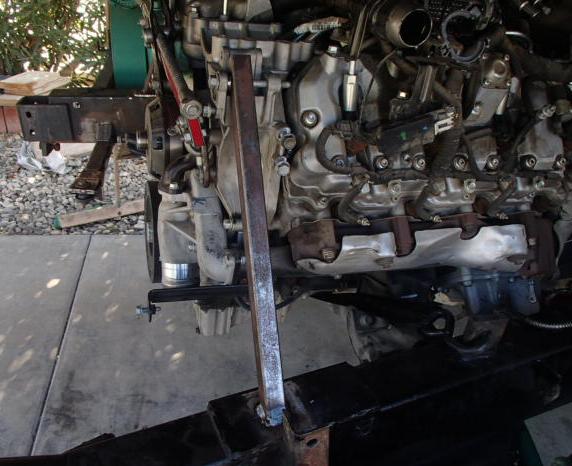

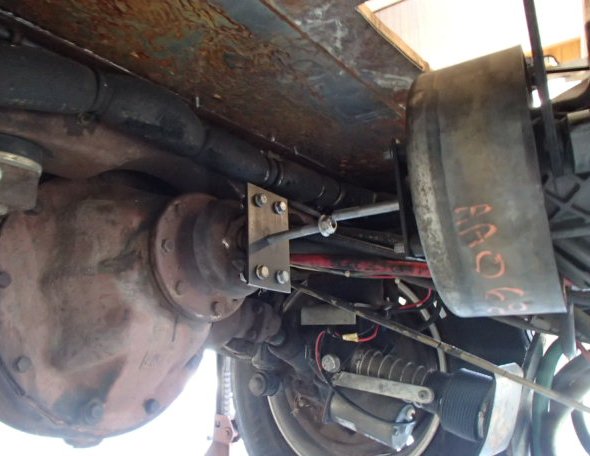

home made alignment pointers, need to lower it a 1/2"

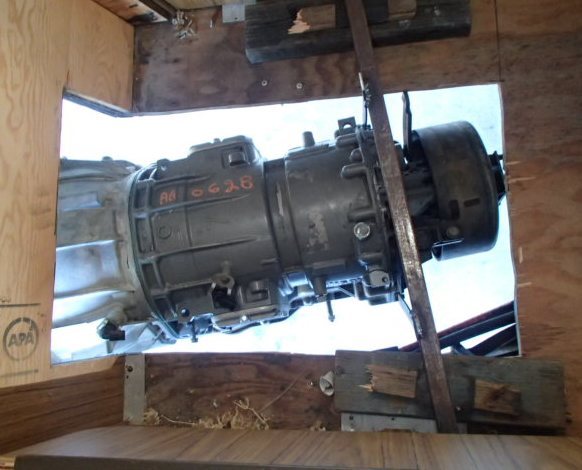

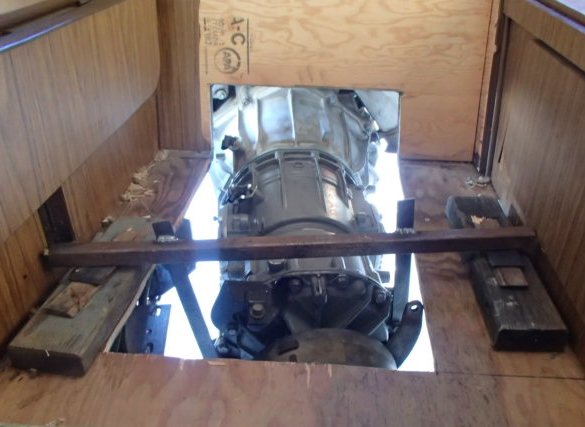

new access cut open to allow larger transmission and easy access to work on it


supported from above to keep the area below clear

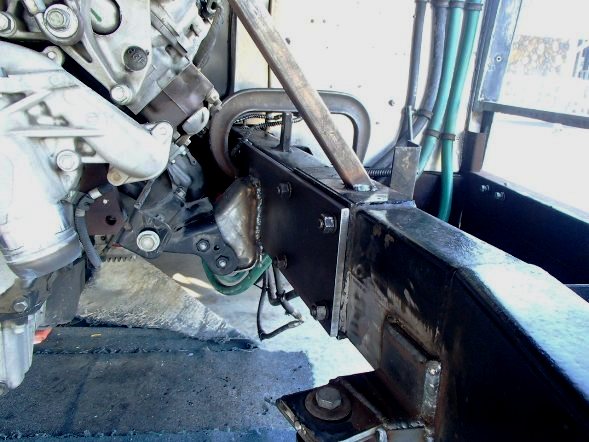

passenger side temp engine mount, these will be cut away as soon as the permanent structure is fabricated and installed.

(1 Comments)

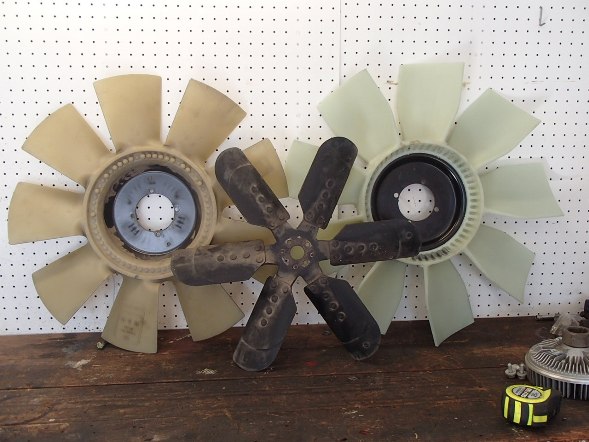

original 23.25" duramax puller fan on the left, 17.5" original(to the 440 when I got it) pusher in the center, and new 24" pusher on the right

only 3/4" larger in diameter but wider blades

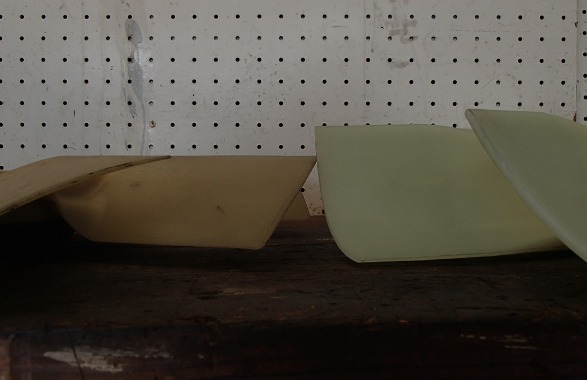

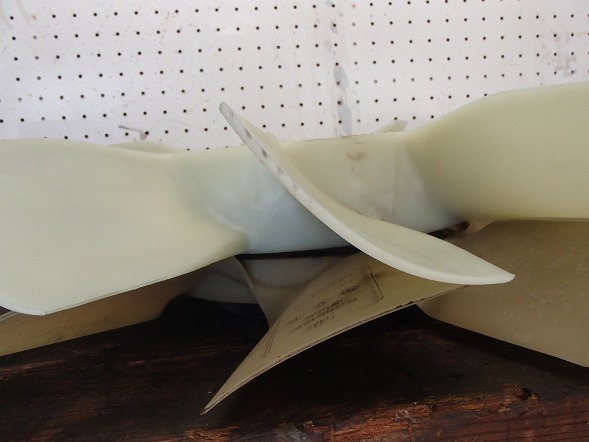

more blade pitch and much thicker blade material

got the backspacing measurement correct so no interference with the engine components

(2 Comments)

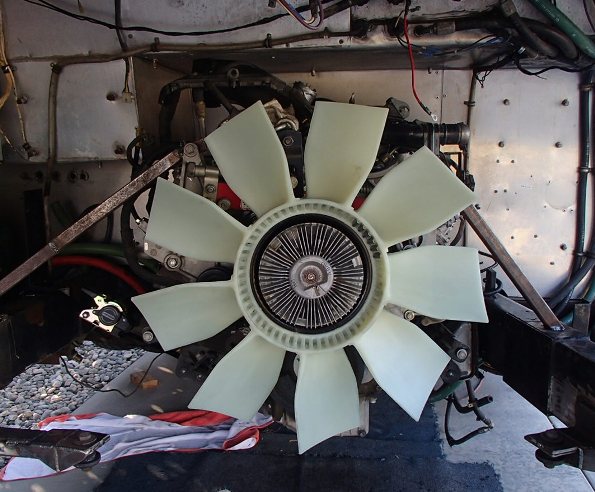

diameter is large enough to pull air from all around the engine fan is American Cooling Systems ACS391325-24 I bought it from Superior Turbo & Injection 3745 CENTRAL STREET DETROIT, MI. 48210 Phone:  313-842-4616 SUPERIORTURBO.COM Fax: 313-842-6061

New passenger side mount, picked up the stock crossmember holes in the frame and will add 2 more up forward where the clamp is.
