Just another DuraMax swap
Author: hal (Show all albums)

Converting 669 to an oil burner.
Show Newest Photos First | Show Oldest Photos First223 Photos - Page : [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19]

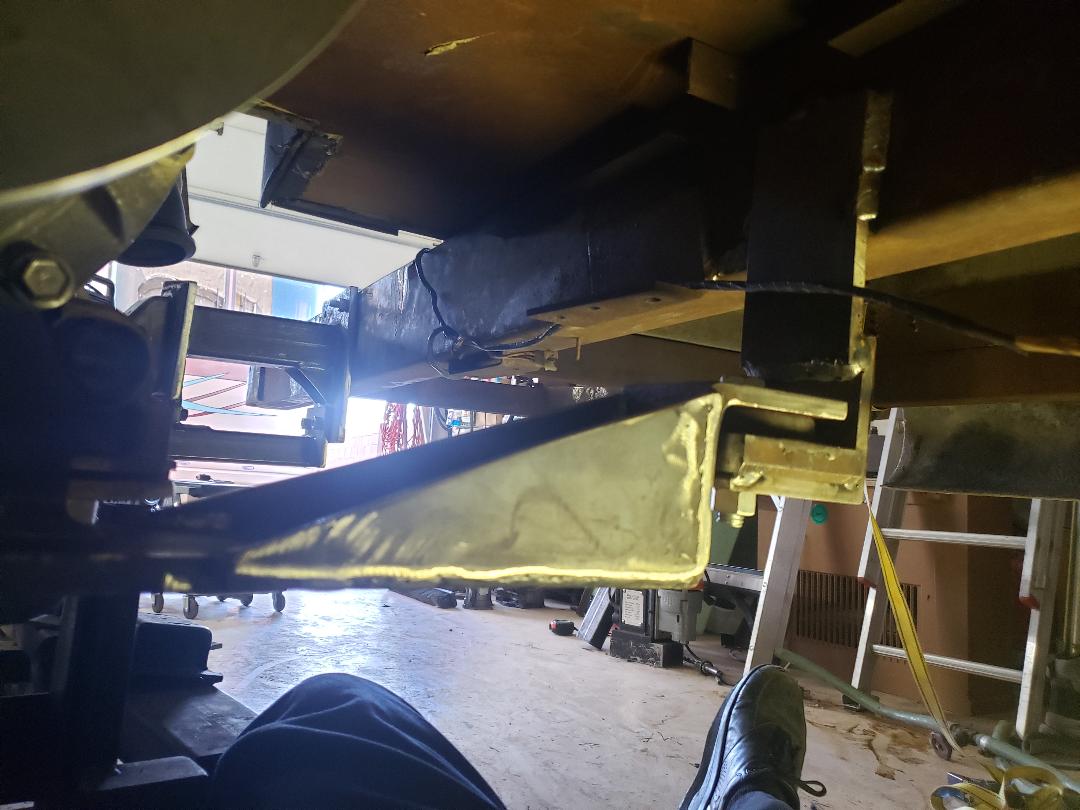

Another shot of the DS mount

DS in place.

Checking frame for level.

Pretty close I'd say.

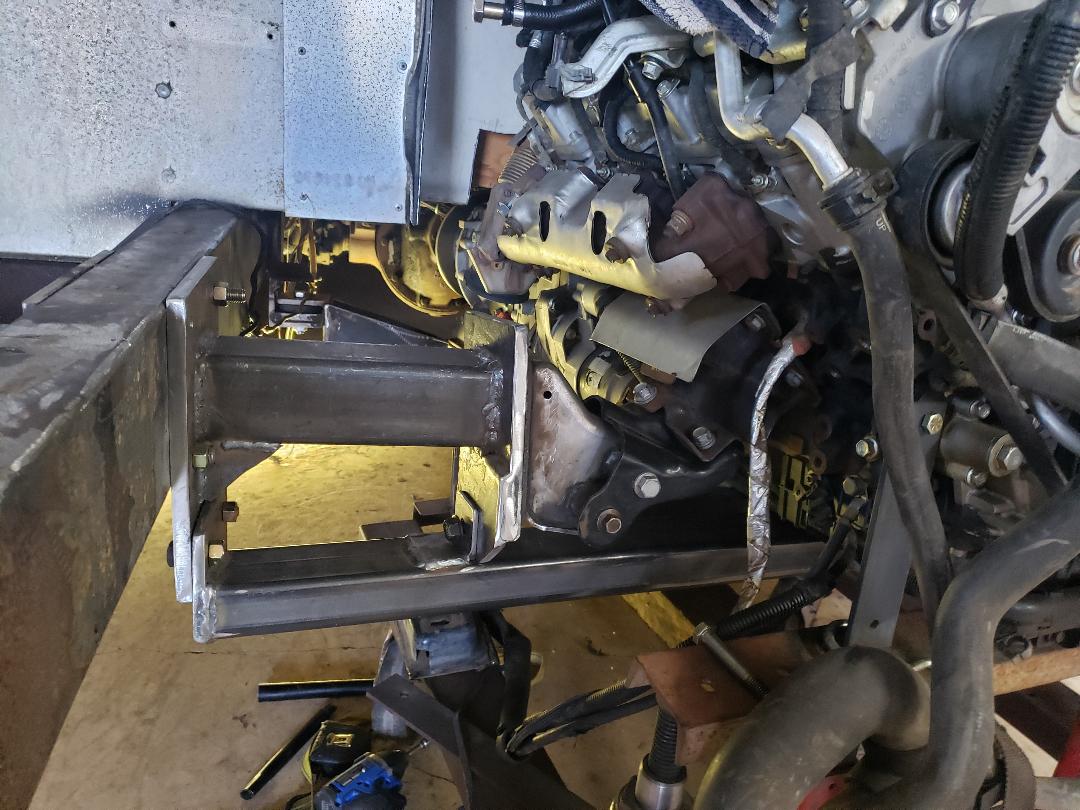

Frame plate for motor mount support.

New bolt in cross member. Easy access to oil pan.

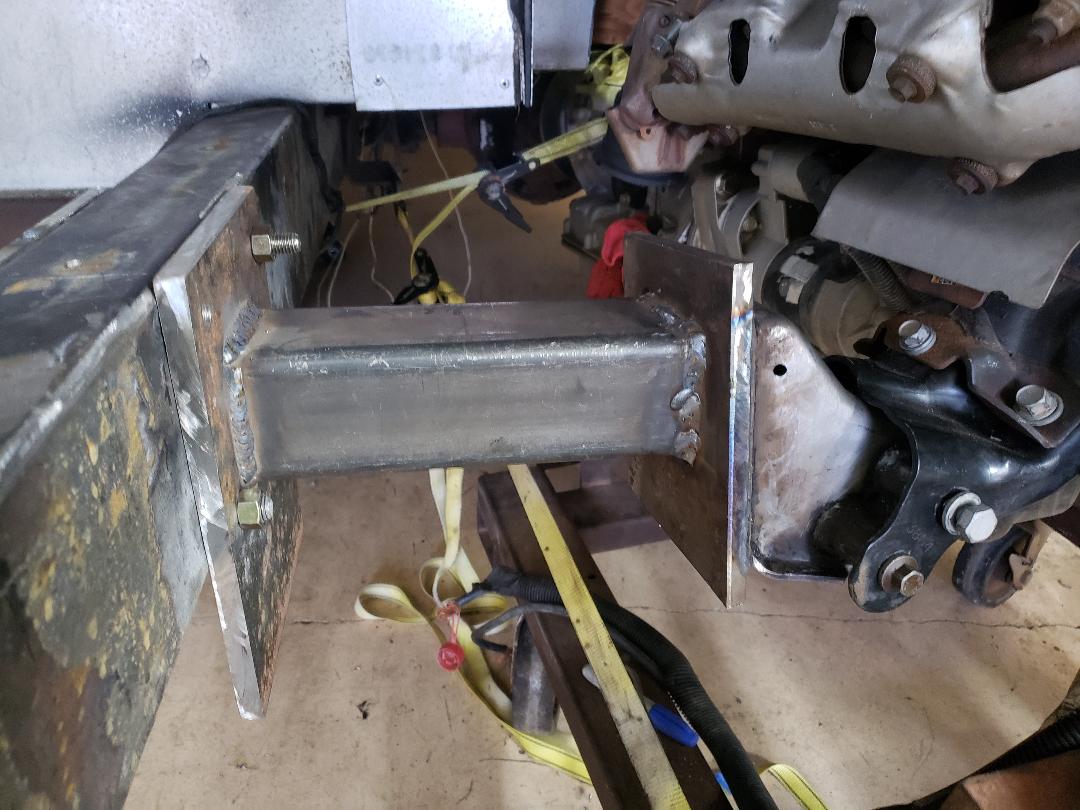

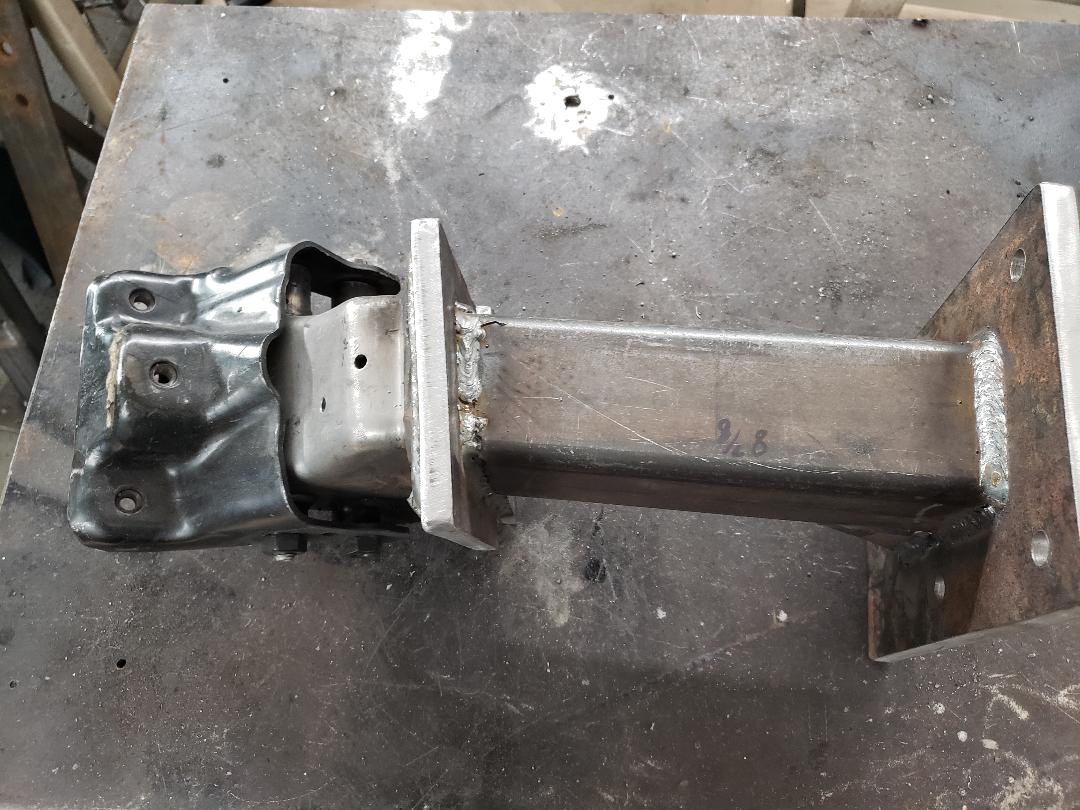

Trans mount. Used old motor mount bushings, attempted to keep mount as high as possible. Lots of gusset here.

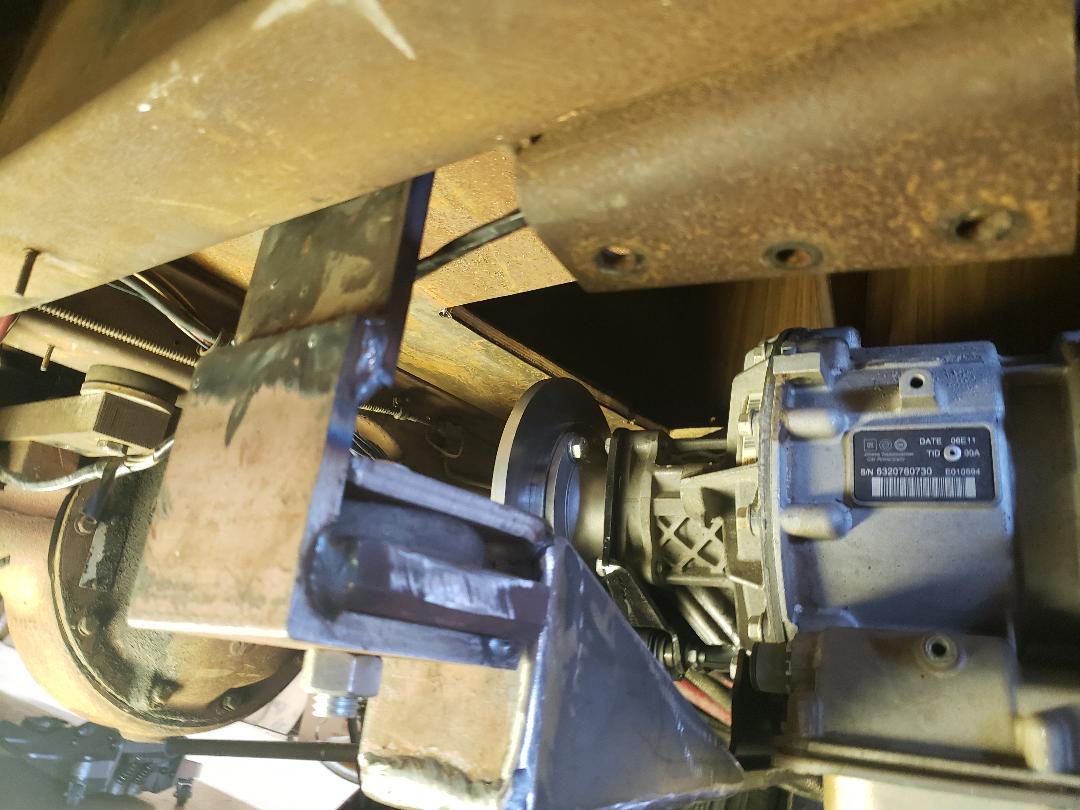

Other end of trans mount.

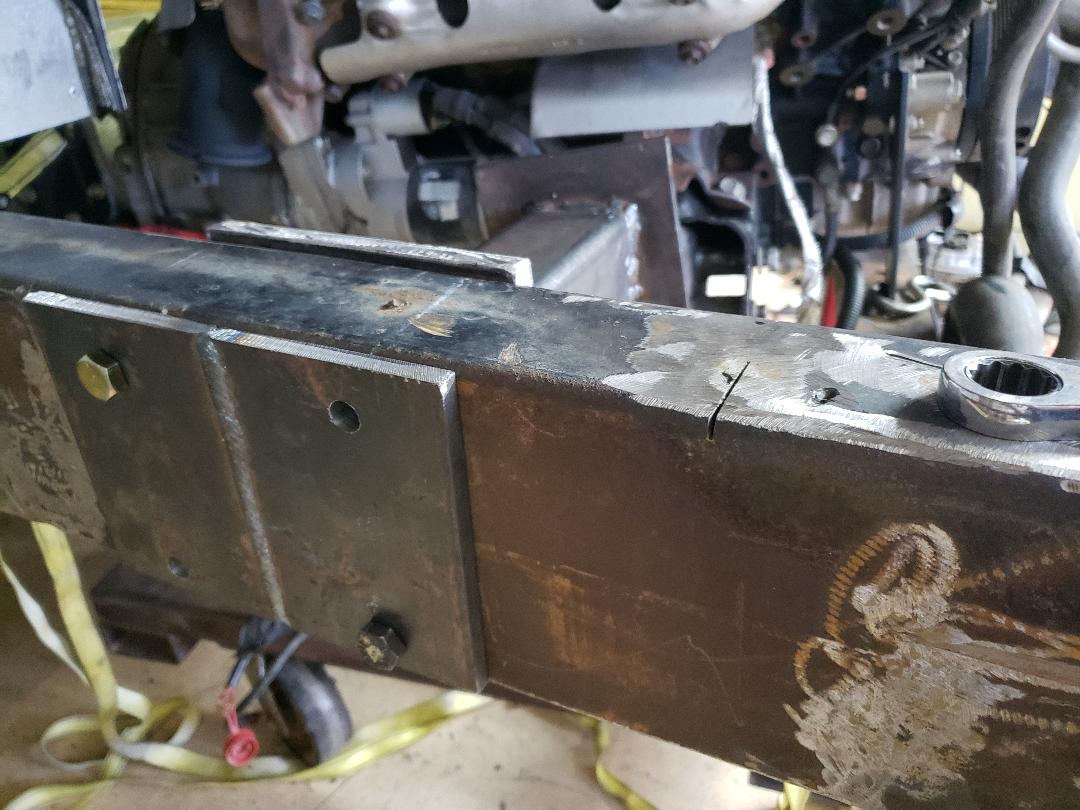

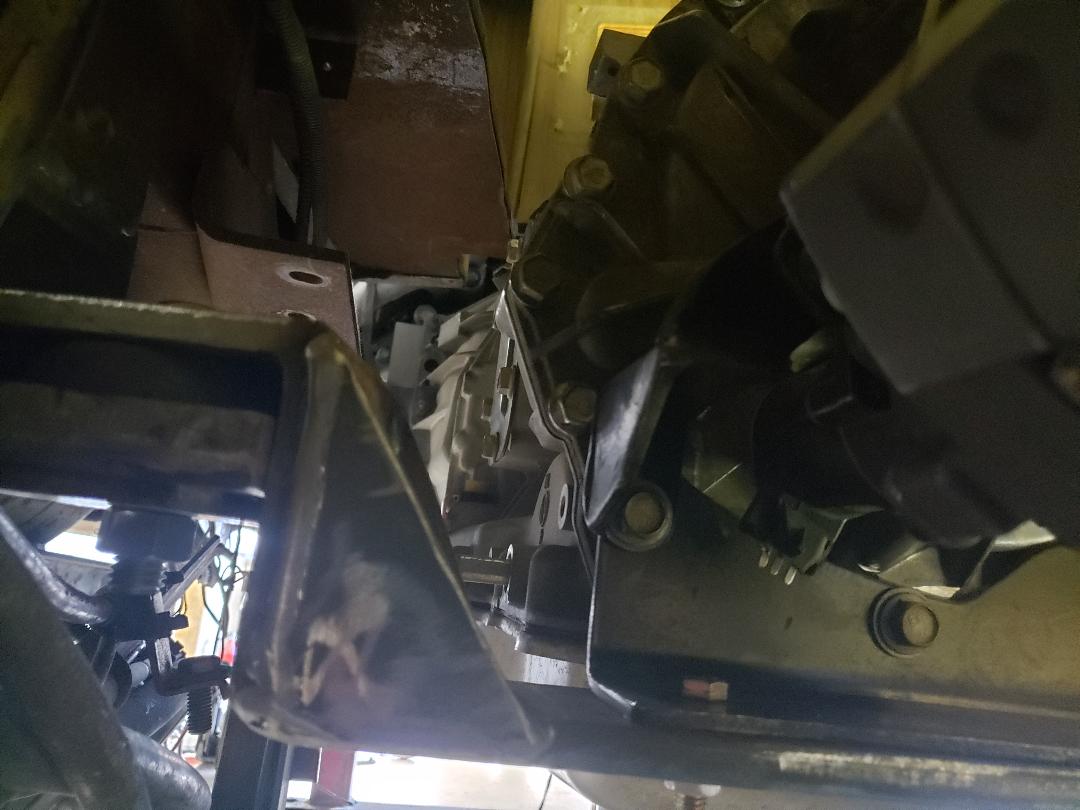

You can see some of the gusseting here. Thats not going to move.

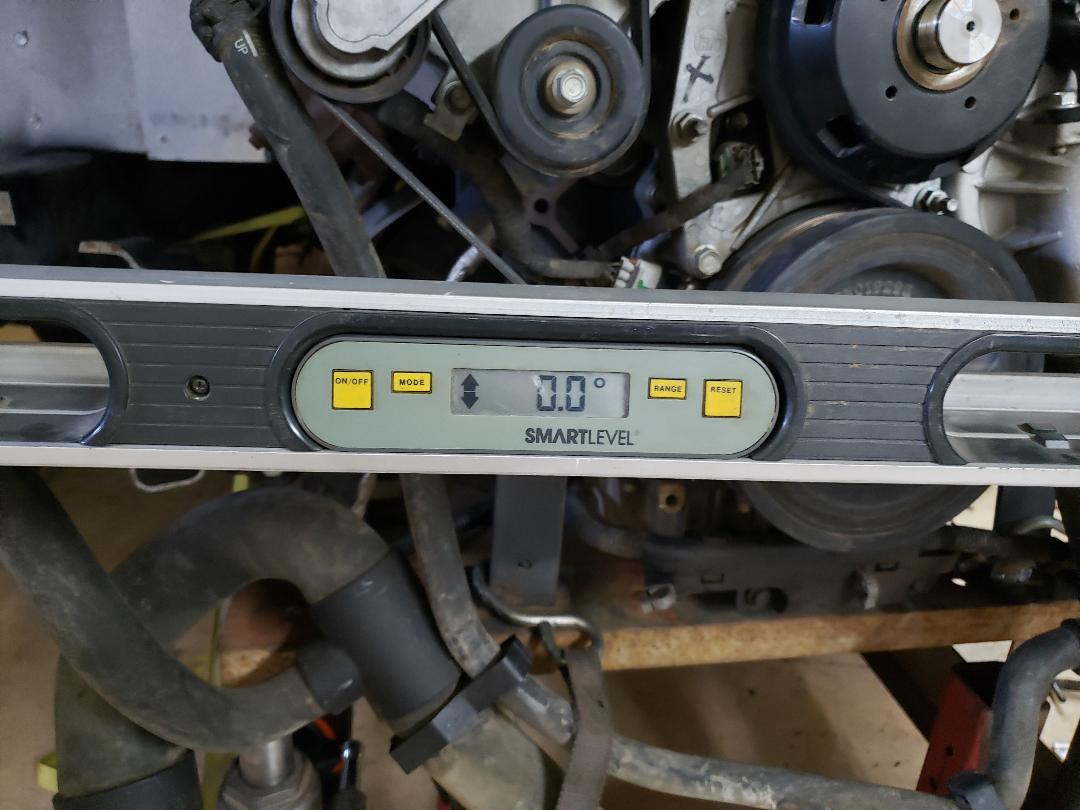

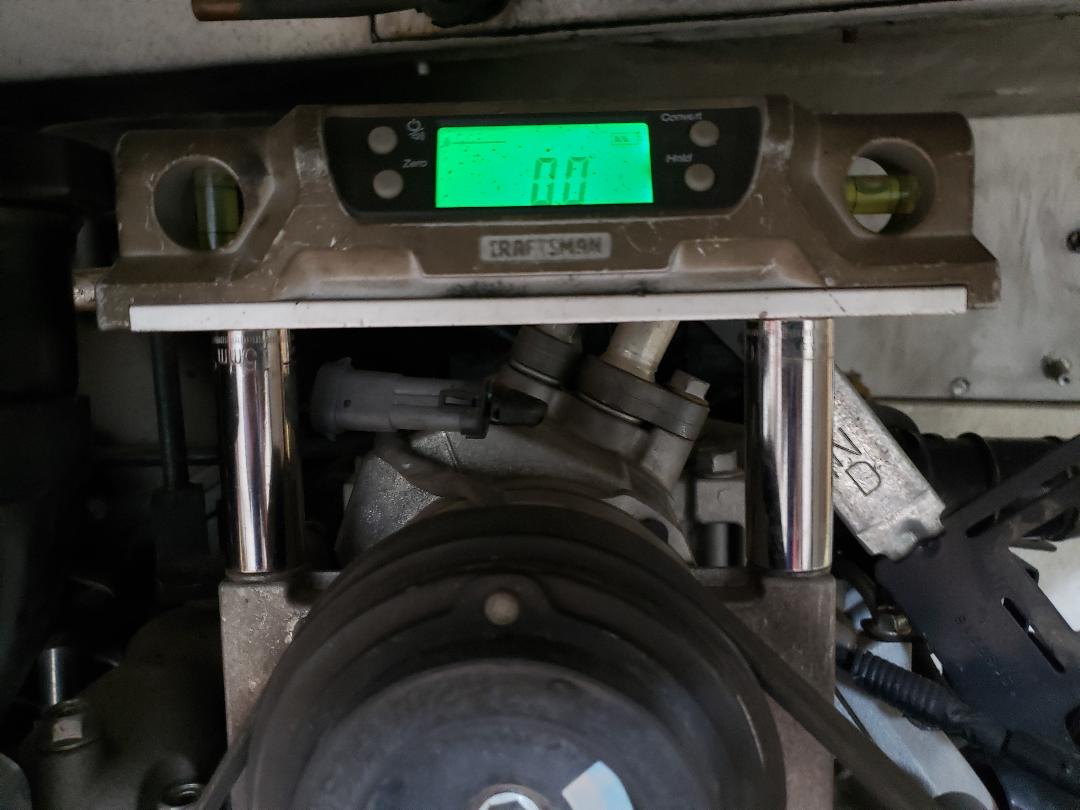

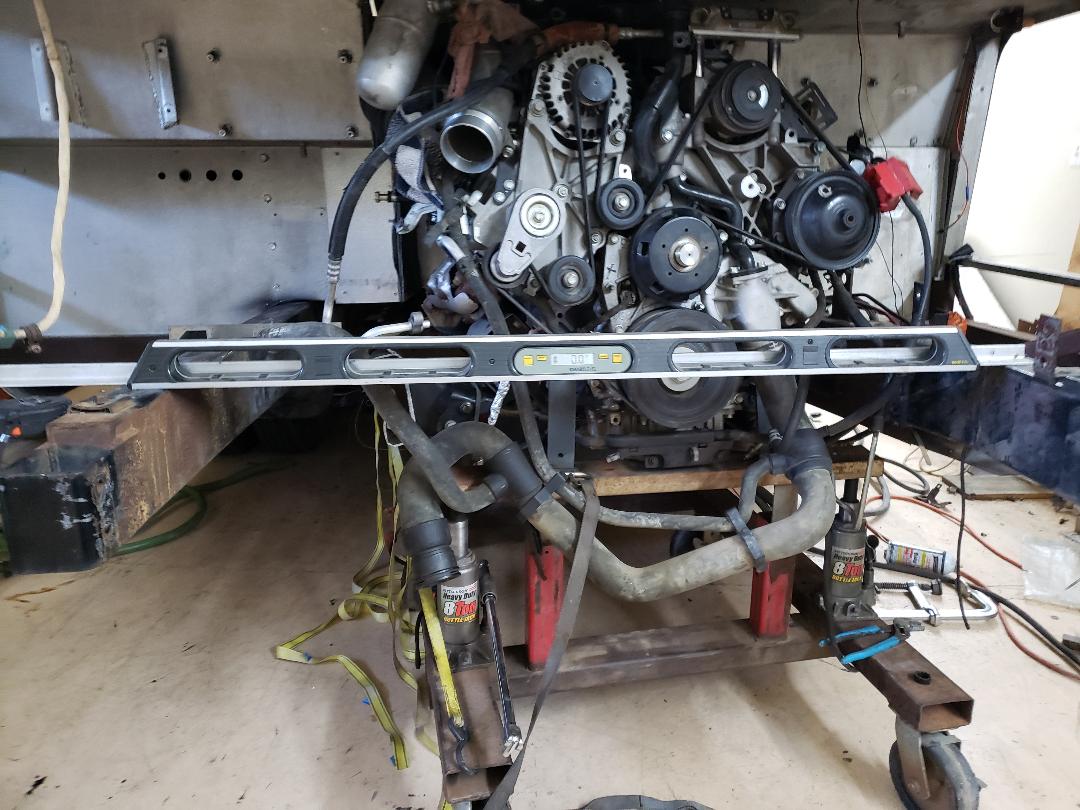

Motor needs to be level with frame too. Hard to find a flat spot on the Duramax for the level but this worked.

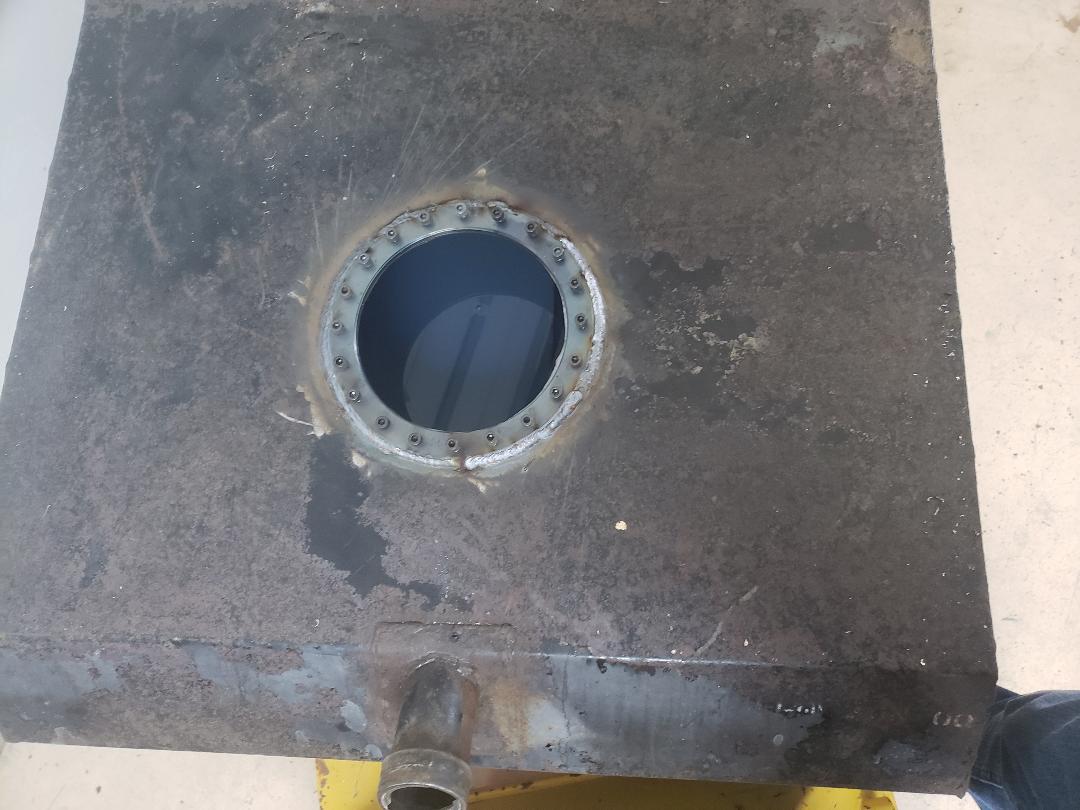

Here's what I came up with for the fuel sender/ supply return for the tank. Got to say I HATE welding on a fuel tank!!!!

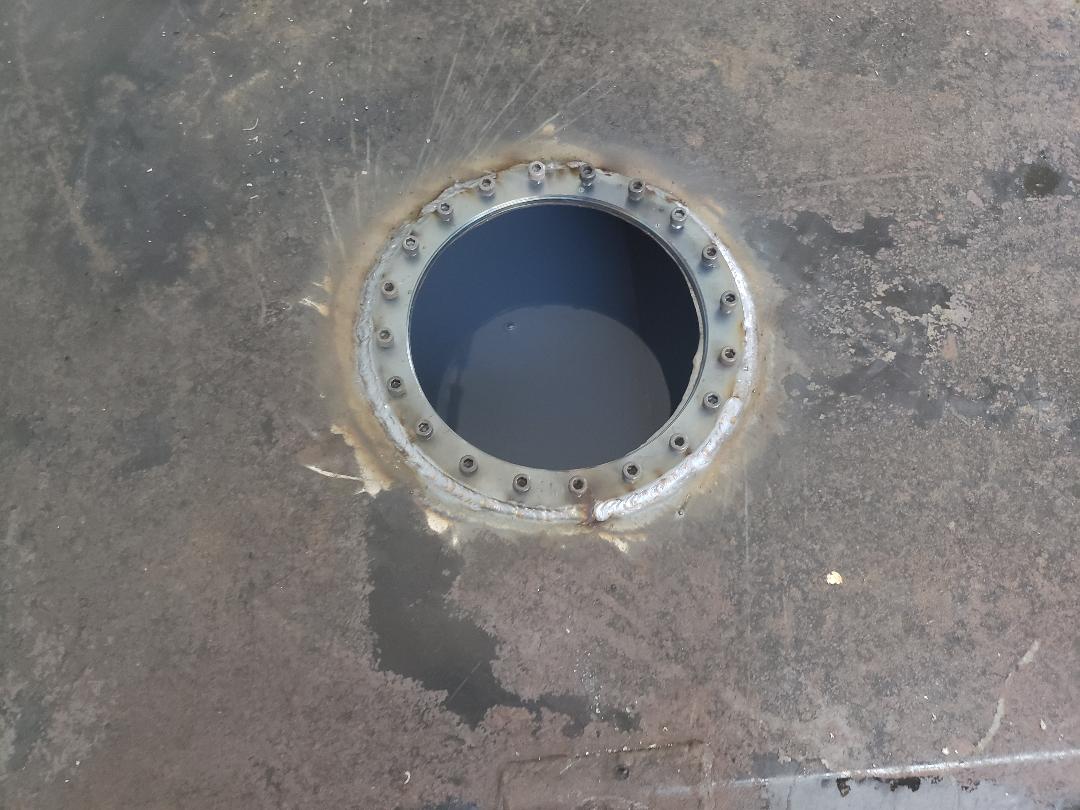

I used a 1/4" 8" round piece of steel for the weld in plate to the tank. Drilled and tapped 20 equal spaced holes for 1/4 x 20 threads to hold the sender in place.
