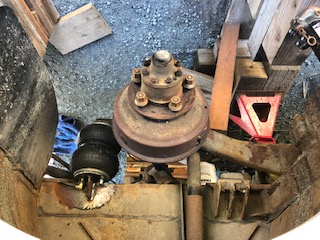

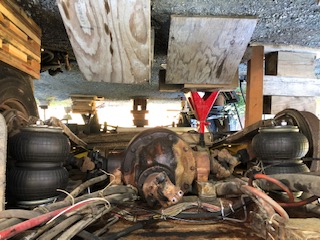

Air test: only put 20 lbs in the drivers side bag as the wheels ain't back on yet. | (1 Comments) Well, there they are. 20 lbs in the left and just over 40 on the right side resting on the wheels. Can't see any obvious deflection in the arms yet. Will check in later to advise on how these worked out. Note: another potential issue that I won't be able to confirm until I get the wheels on the ground again and roll it, is the amount of clearance I left between the outer prop-shaft U-joints and the spring-arm mount beam; it ended up being very close and I hope it don't become an issue or I'll have to fab-up new arms with more clearance. Once the engine swap is done I should be able to go to the weigh scales and weigh the front and back axle loads with the air-spings inflated vs deflated to determine weight transfer effectiveness. This was a tough job for me and if it works out I hope it helps someone, someday, sometime... somewhere. | My latest incarnation of an ATV cherry-picker. Without the advantage of pavement or concrete, this is a workable solution. | (1 Comments) 1100 lbs. Managed to move it a considerable distance by myself. Would have been impossible with the small OEM steel wheels on the picker. |

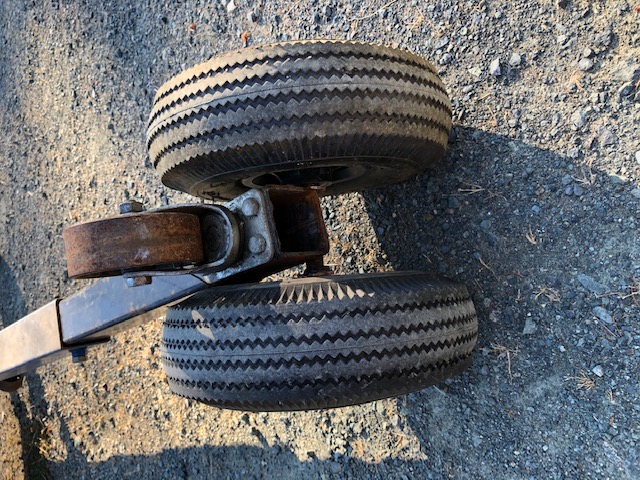

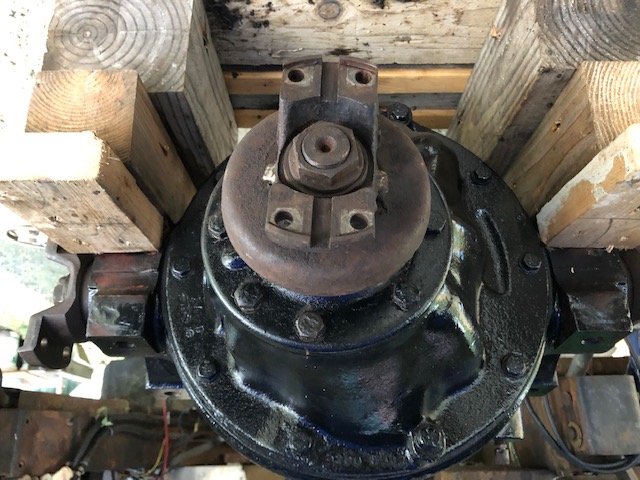

Gave some thought to convertibility. For the front wheels all that is needed to rig it for rolling on concrete is to flip the leg arm so the steel wheel is down. | (1 Comments) For the rear wheels all that is needed to get back on concrete is to loosen 8-bolts and slide the wheels off. Boom-done! The four front tires are rated @ 1200/lbs. the two rear swivel wheels are rated @ 700/lbs. Will be looking at doing the 60lb valve-springs and KDP pin next. | This pic is out of order as it should be at the end of diff stuff. Here, it's ready to reinstall with the new seals and coat of paint. | |

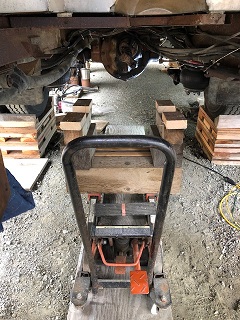

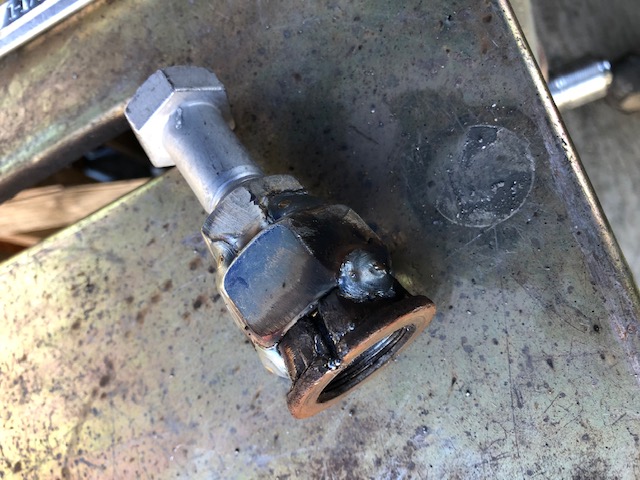

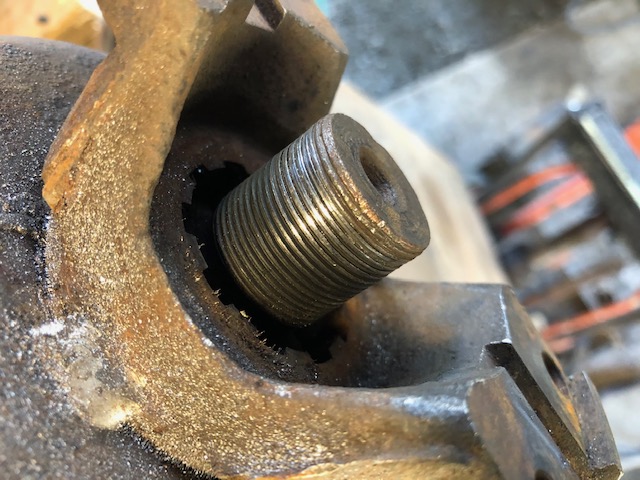

(1 Comments) Extractor for stripped pinion yoke nut. 1" coarse nut with 3/4" nut welded to that then both welded to the yoke nut. Turned the 3/4" x 3" bolt inwards - to apply outward pressure to the yoke nut - as I simultaneously backed it off; all over in 5 mins. | Did a bit of a number on the threads. In the end, I took it to a machine shop and they chased the threads and advised that I lose the thick 1/4" washer in favor of a thinner one, which they supplied. This gives the pinion nut more new threads to bite into.Problem solved. | This lift was invaluable to enable me to do this on my own. I'm on roadbase/gravel so an 8ft strip of 3/4" plywood made the perfect runway under the coach to get it out then back in again. | My friend and project supervisor, Liam. He's a Cummins-nut same as me and is also shop-foreman at a large Chrysler dealership in town. Helps keep me and my 'ideas' grounded in the real world. |
