#846 - Cummins Swap
Author: andy1canada (Show all albums)

Howdy Folks!

Going to give this another try as my first attempt didn't go so well on the 'Diner-conversion' thread (Will update/edit that soon).

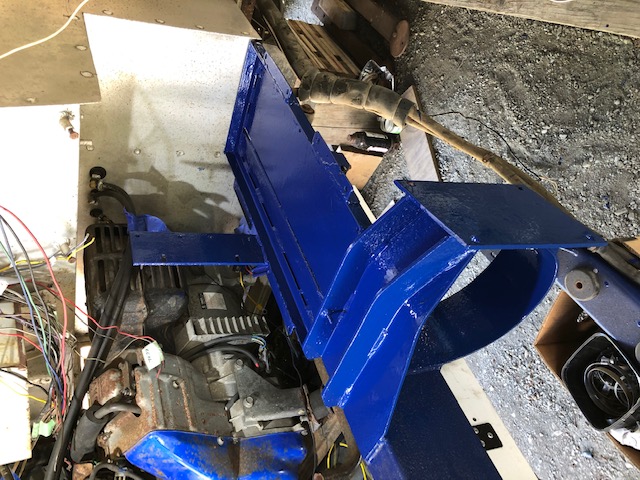

Started my Cummins swap by pulling off the bumper; only took better part of an hour. That sucker is HEAVY! Better part of a 100 lbs I bet. Will be looking to knock substantial weight off that baby while still retaining a 5000 lb towing standard.

This will take a while as it will unfold as time and resources permit, so please be patient.

More pics and hopefully some videos (FMC-TV) to follow.

Cheers,
Terry
#846
Show Newest Photos First | Show Oldest Photos First237 Photos - Page : [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19] [20]




Throttle cable re & re: This proved to be the most difficult part of the cable swap job. Getting under the throttle pedal isn't an easy fix to get at the cable end. Same as the original cable I found a boat push-pull cable to do the job. Needed a longer one to reach the Cummins throttle lever position. Cost about $100/CAD to land one of these here: Teleflex SeaStar XTREME CCX63327 (27 Feet in Length). Attaching to the engine took some messing around but I finally figured out a simple solution.

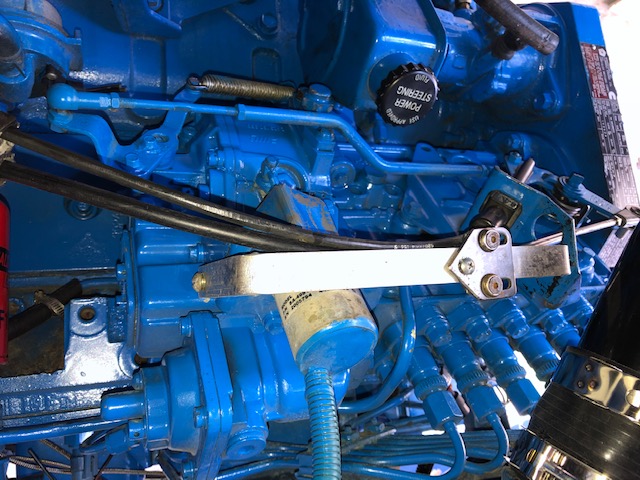

Used a pc of aluminum 1/4" x 3/4" bar then bent each end and drilled a hole for a bolt in each end. Attached on end on the fuel shut off solenoid bracket and the other on the throttle cable mount bracket. Note: no TPS sensor or PCM (computer) in play here. Gears 1 thru 3 are hydraulically controlled, actuated by the TV cable you see next to the throttle cable, while the overdrive and converter lock up are controlled by simple toggle switches in the cockpit.

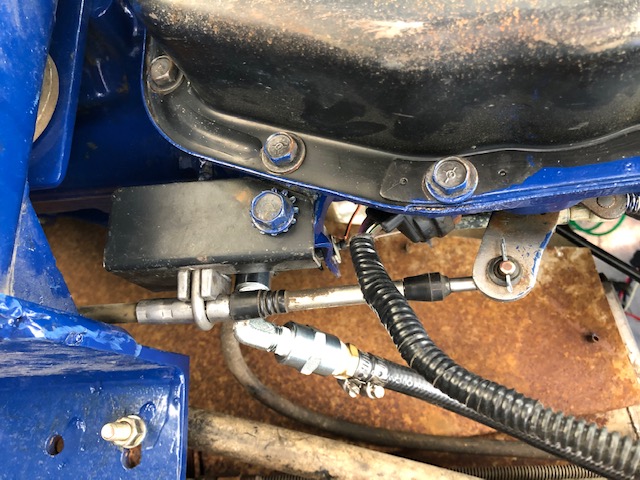

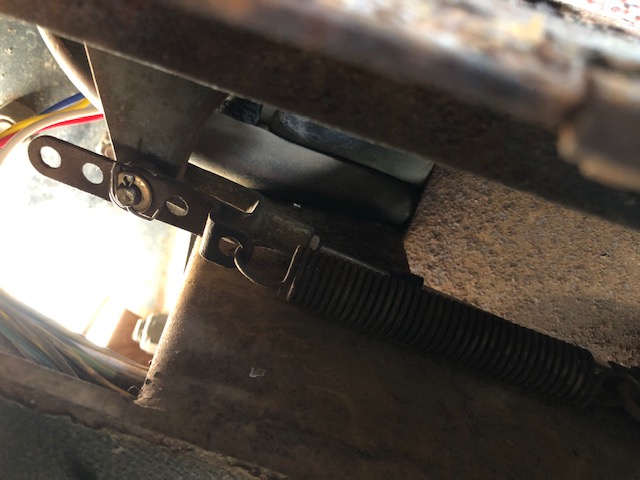

Shift cable: got lucky again with the OEM FMC trans shifter cable as it appears it will work as it was. Will know more once it's back on the ground to test it out. I simply bolted a short pc of angle iron to the trans to mount the cable U-bolt to. This pic is looking upwards at the cable connection.

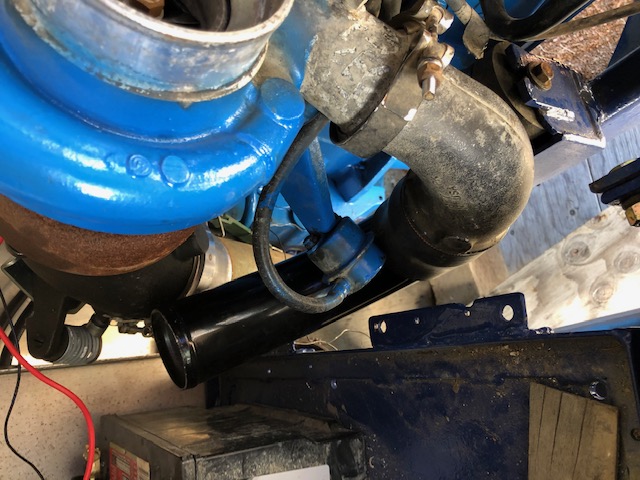

Intercooler plumbing: one note on the hot-side pipe coming out of the turbo. I used the original Cummins cast elbow to get the pipe headed rearward to the intercooler inlet but discovered it ran smack into the wastegate rubber air line. I resolved that by turning the vacuum cylinder 180 deg to get the hose turned out of the way to this position. Seems to do the trick.

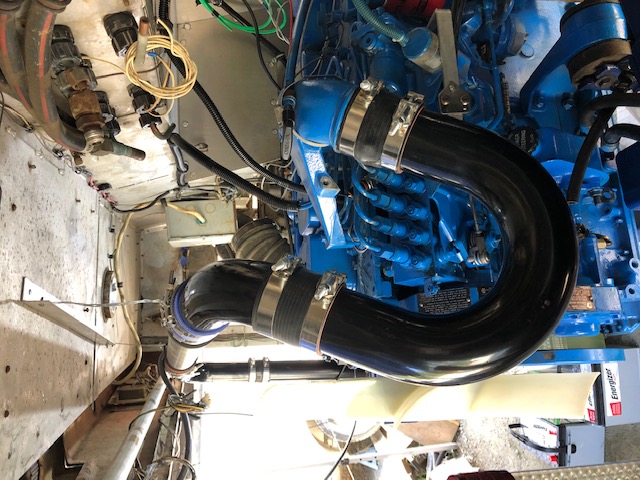

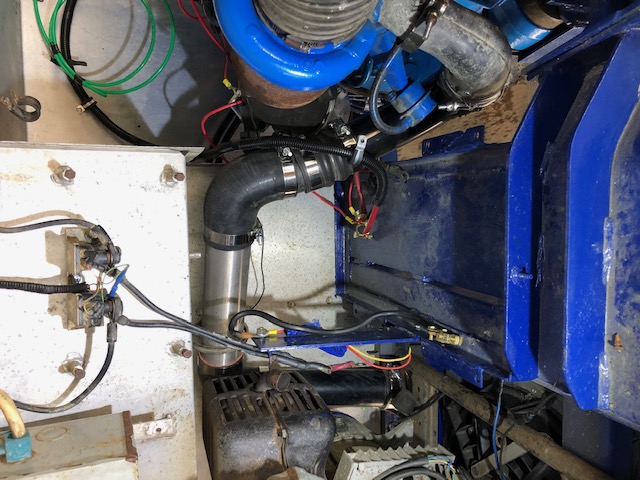

Hot-side plumbing in with room for the batteries underneath.

Cold-side in with suspenders.

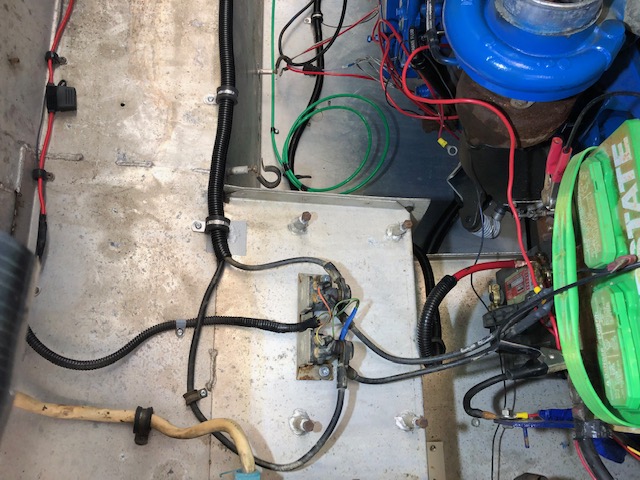

Intake air-heater grid solenoids in. There are 2 of them and they draw 100-amps or so each for those freezing morning starts.

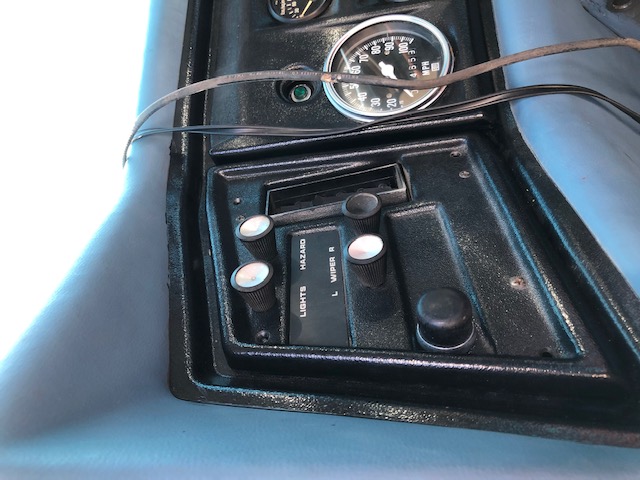

Heater grid rubber-bulb type momentary switch. A PO had installed a rocker switch here that I didn't use so managed to do it without adding another hole to something.

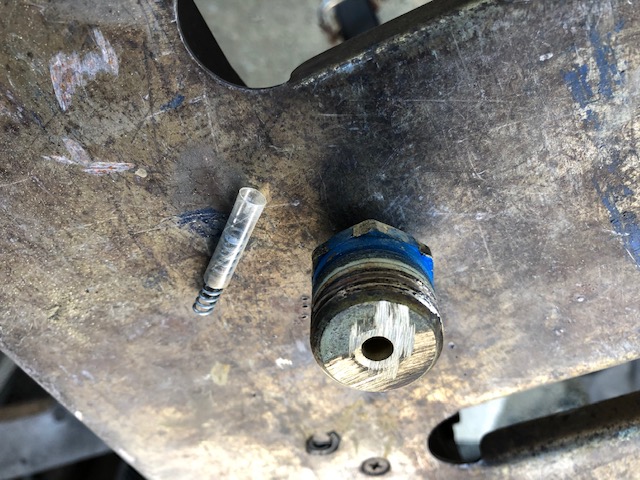

Solution (I hope) so Cummins 6BT water temp sensor works with FMC VDO OEM temp-gauge. Cut off the sensor probe on the Cummins 3/4" NPT coolant temp probe. This little spring jobby was inside it.

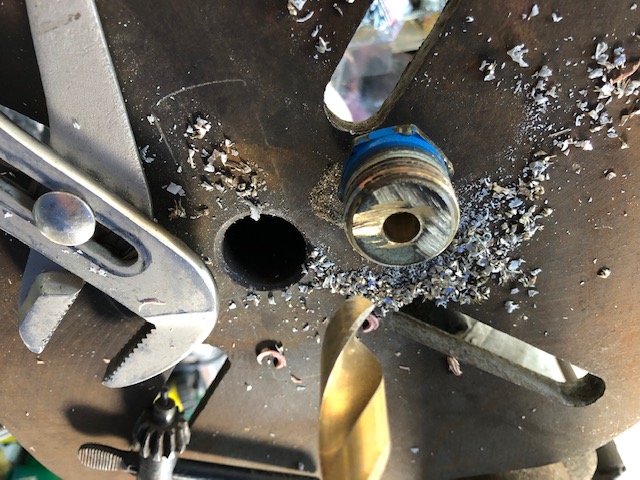

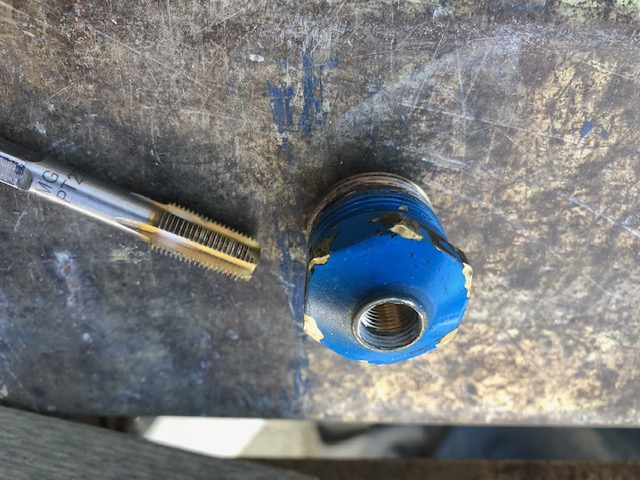

Then, low and behold, found I already had a 1/8"-27 NPT tap on hand. So drilled and tapped the sucker for the new VDO temp sensor (VDO 323057 Temperature Sender).
