Just another DuraMax swap
Author: hal (Show all albums)

Converting 669 to an oil burner.
Show Newest Photos First | Show Oldest Photos First223 Photos - Page : [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13] [14] [15] [16] [17] [18] [19]

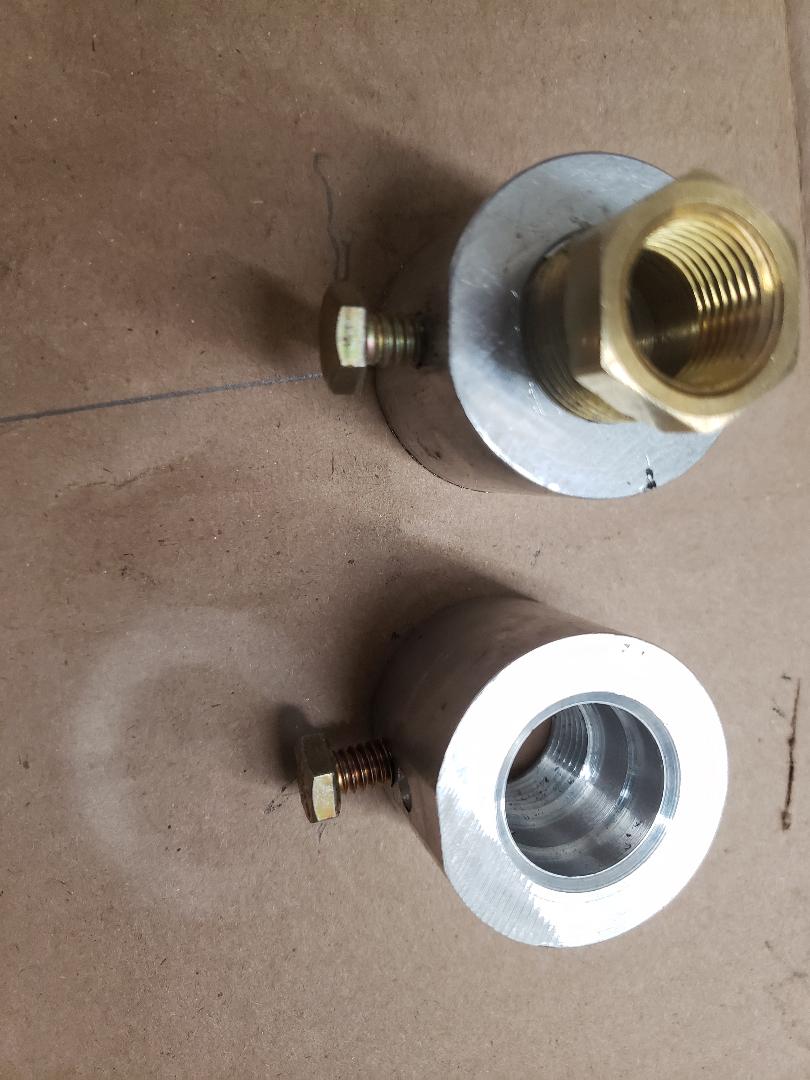

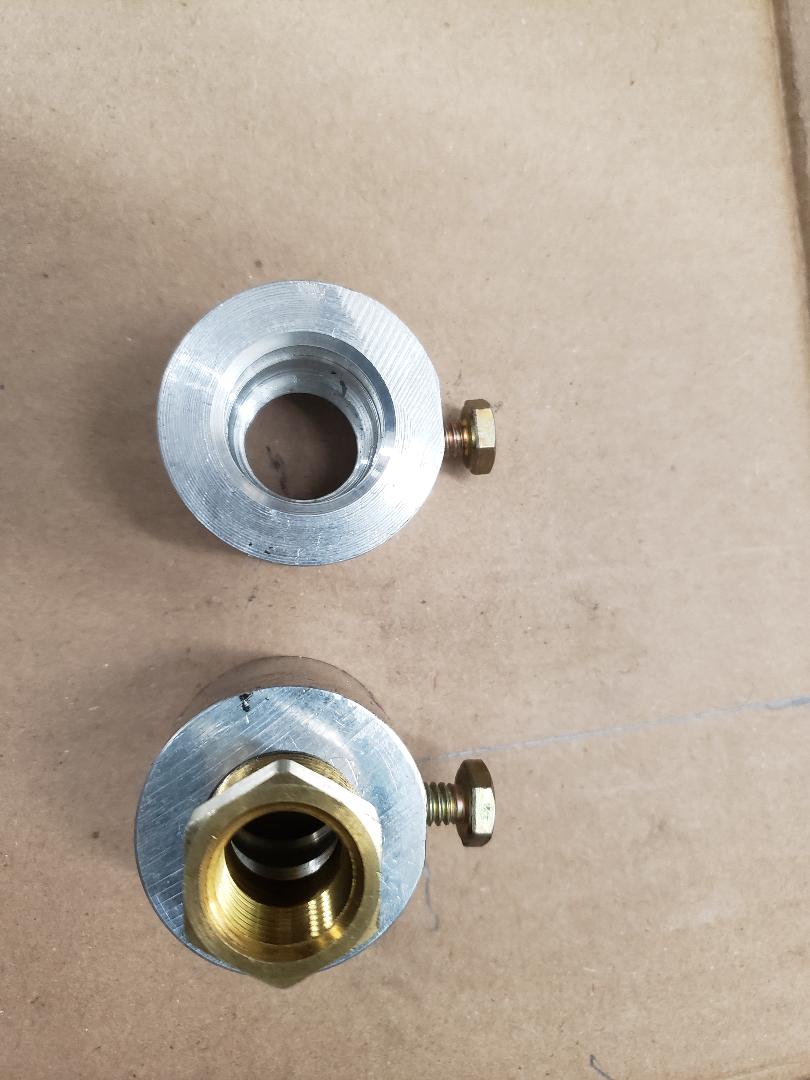

Needed to make these adapters for the remote mounting of the reservoir.

Another view of the adapters. There will be a hose barb attached and hose that goes to the master cylinder. Finding brake fluid rated hose/rubber bung seals is a real challenge.

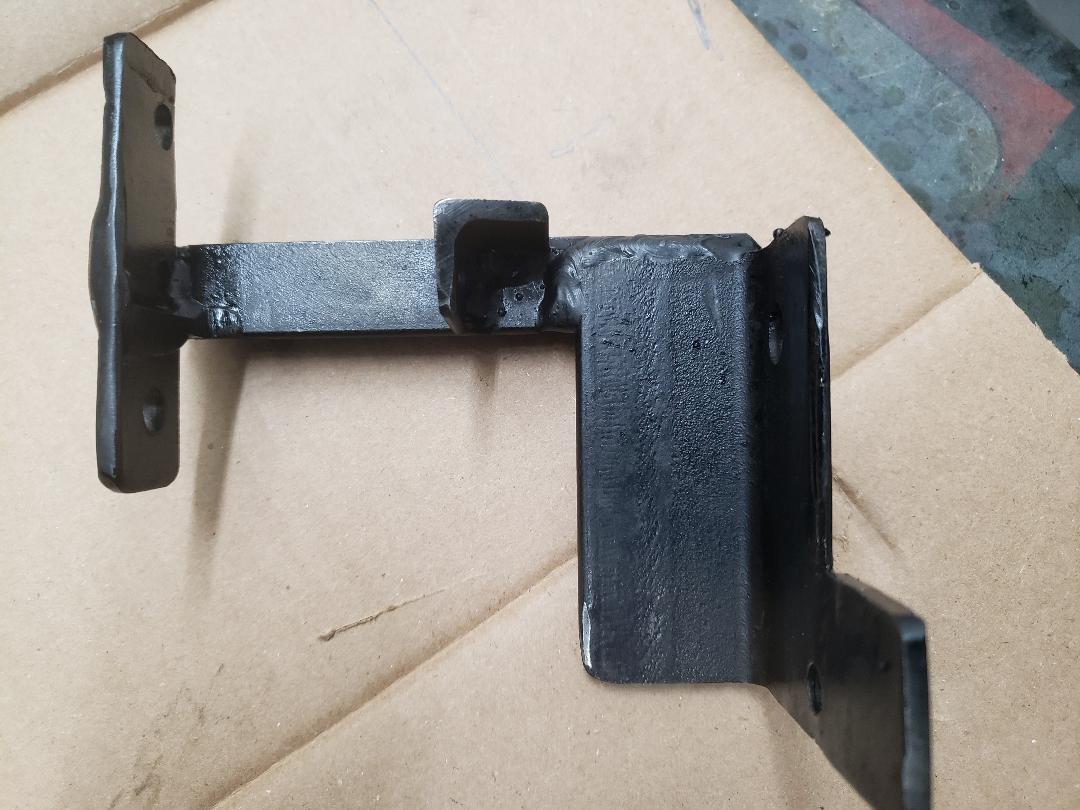

Here's the bracket for the reservoir. More going on here than meets the eye.

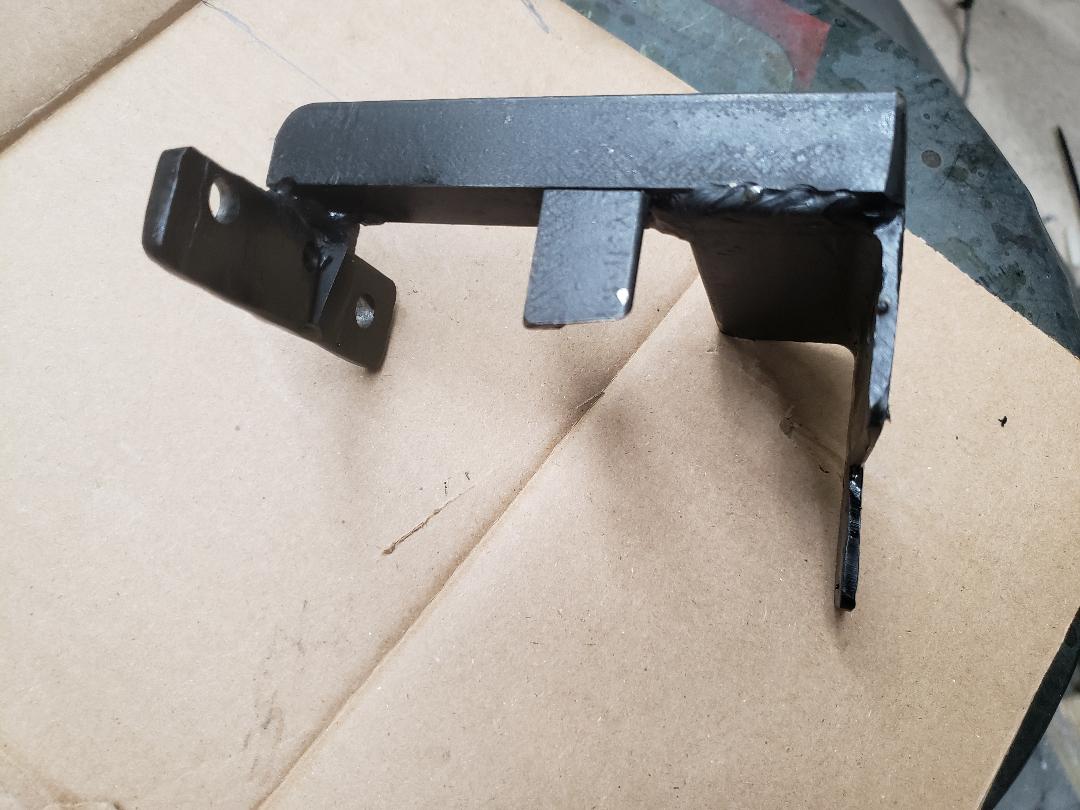

Another view of the bracket.

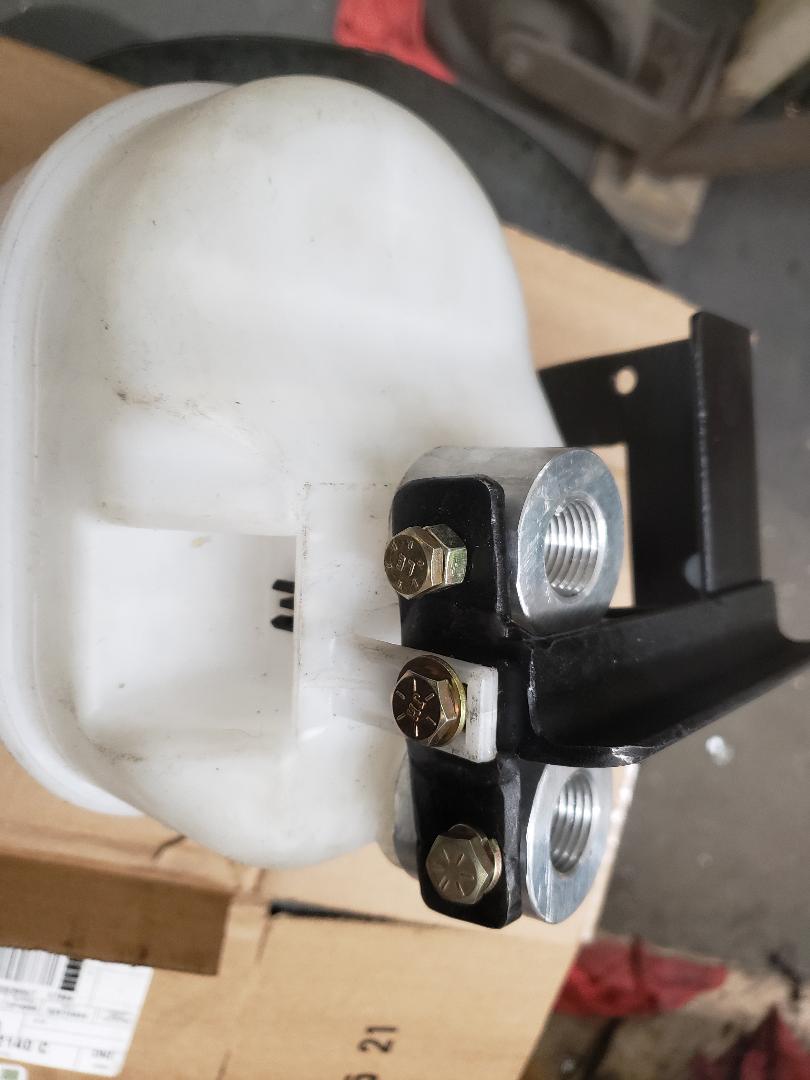

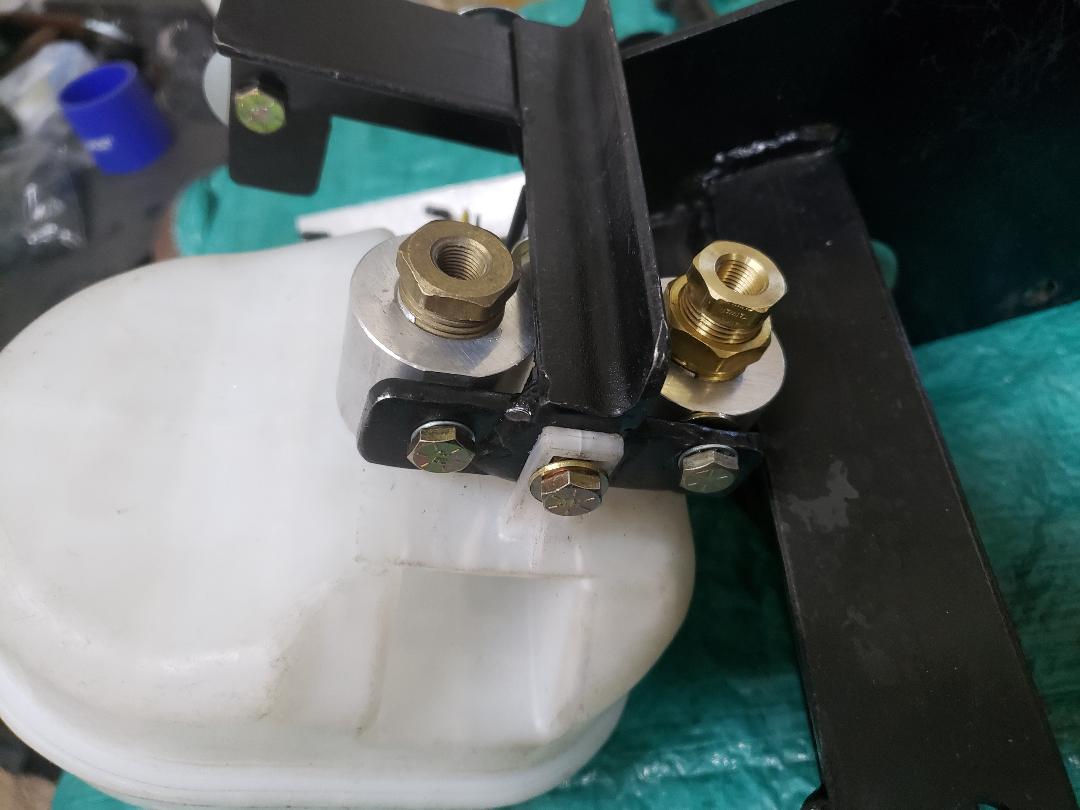

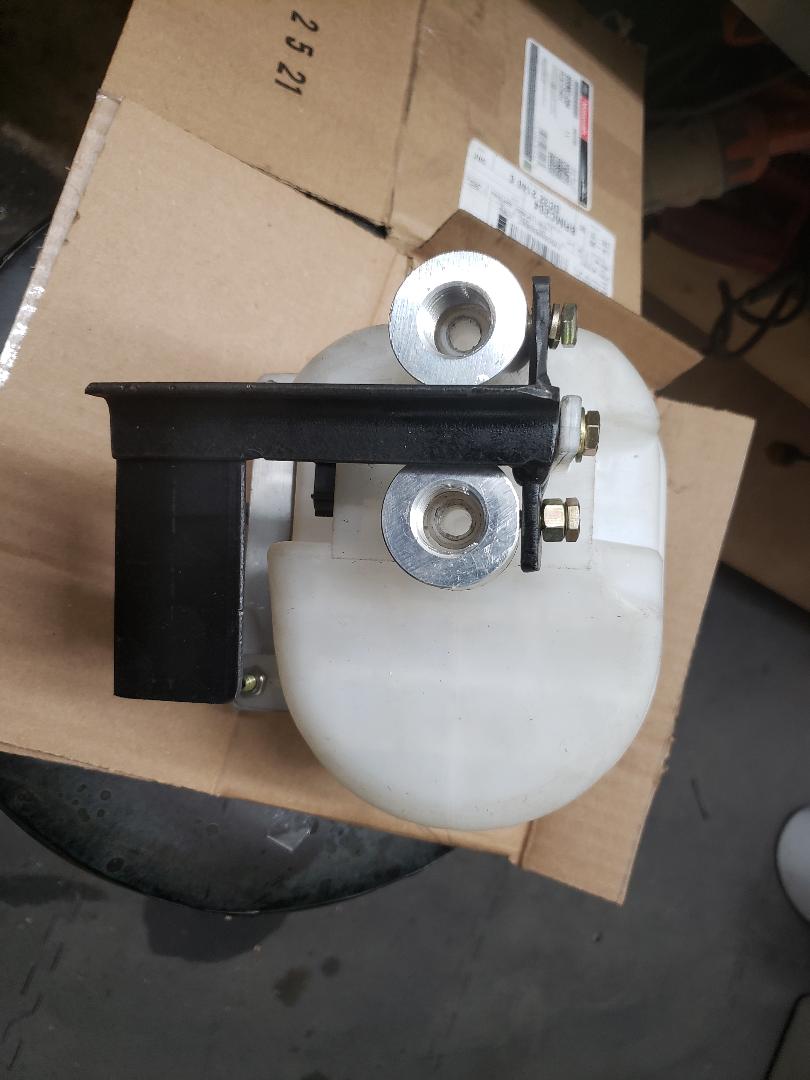

Here you can see how it goes together.

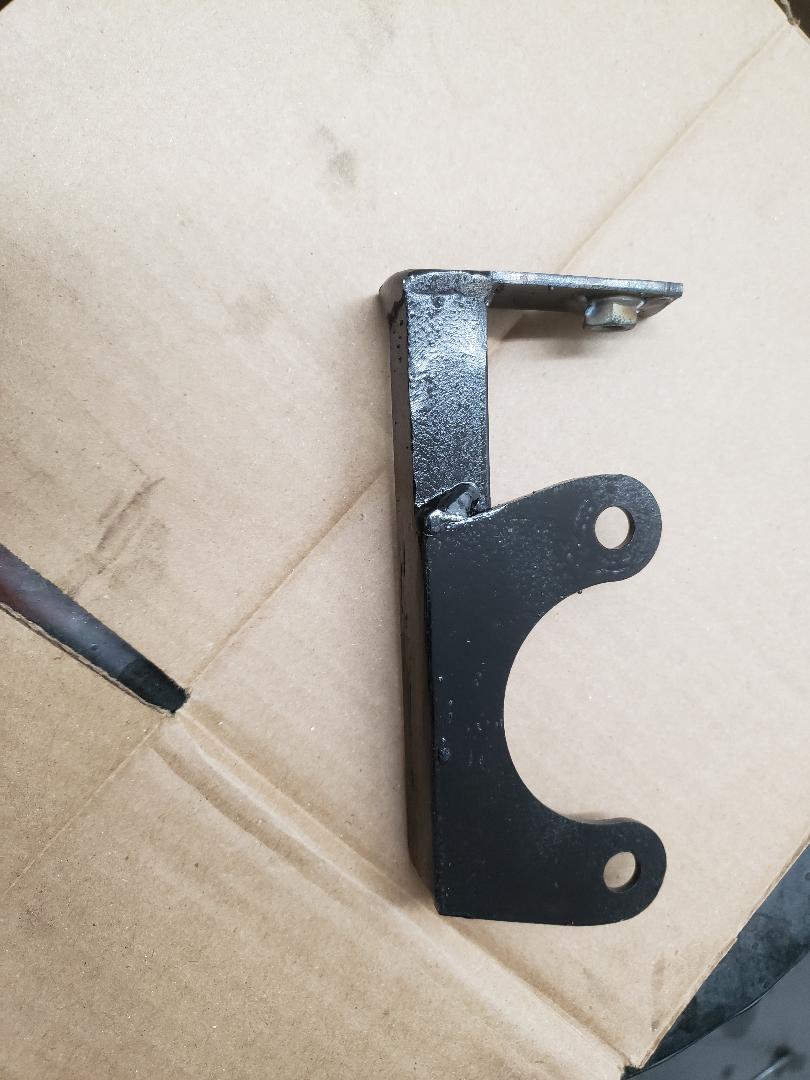

Decided to add an extra support bracket to the hydroboost/master cylinder. Not much room under the hood to fabricate close tolerance pieces.

Here you can see the float switch that warns if fluid is low.

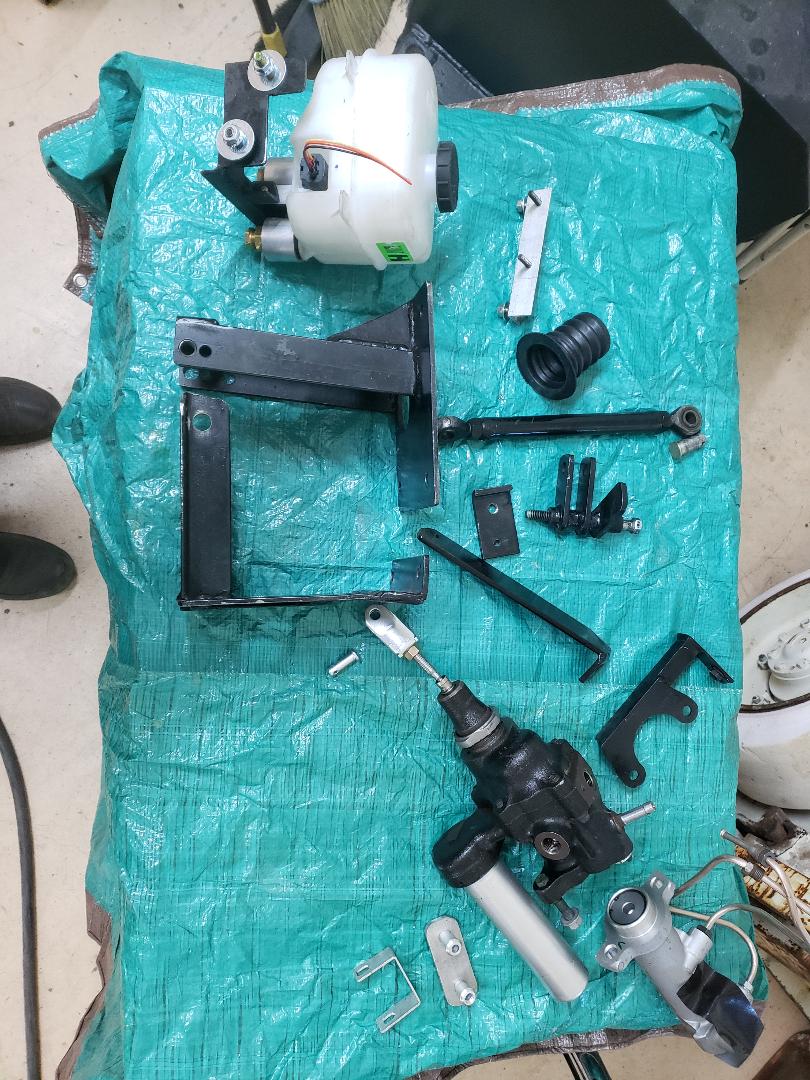

An overview of the new brake parts that needed to be fabricated. A few more pieces on order, special hose and a few fittings and it should be ready for install.


This was a bit more complicated than I first thought. Of course!

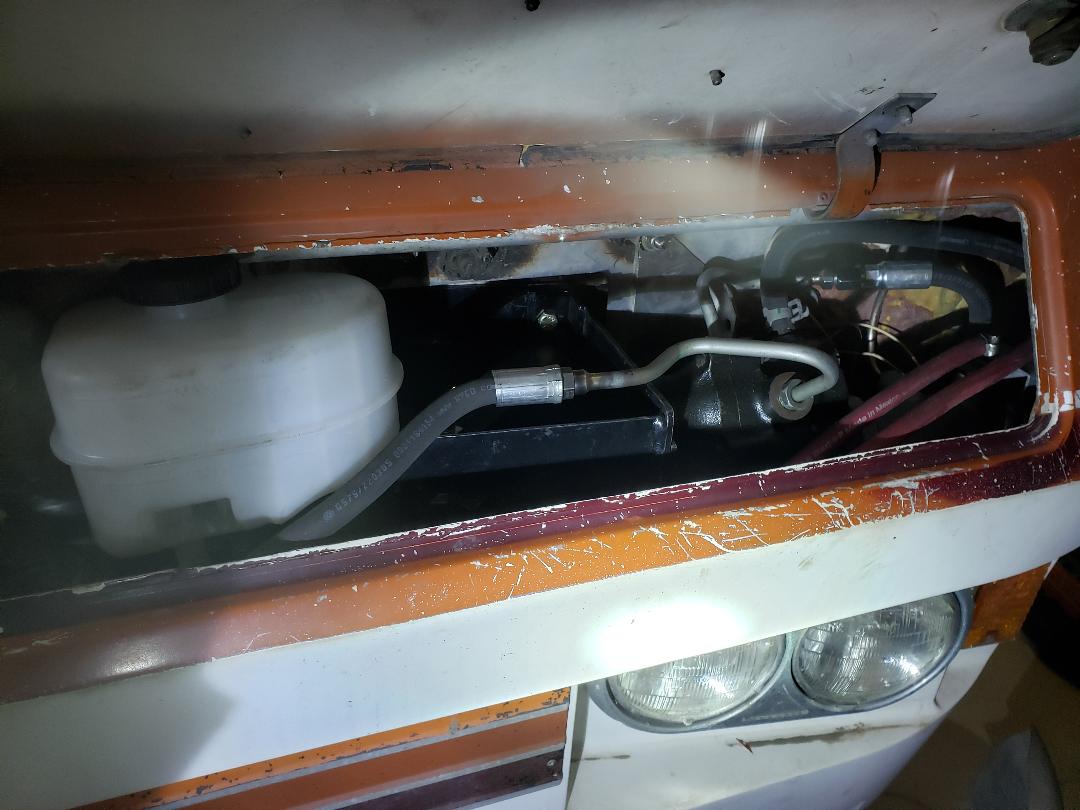

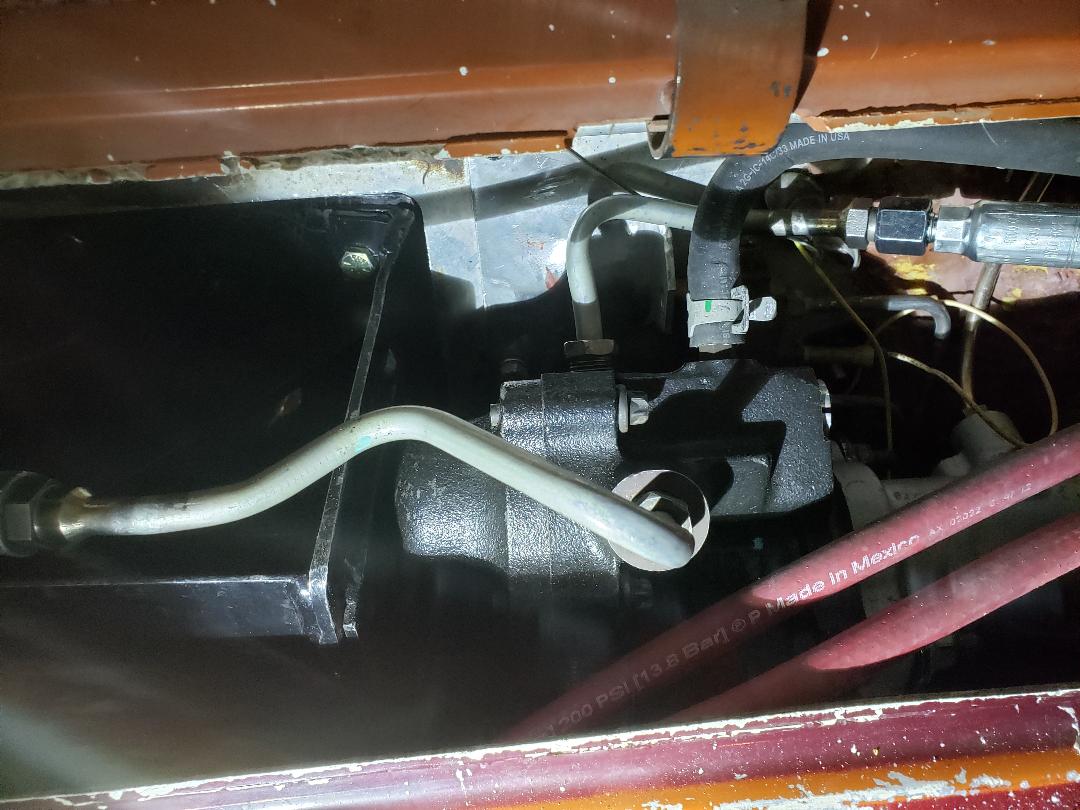

Mounted the hydroboost, master cylinder, remote reservoir.

(1 Comments)

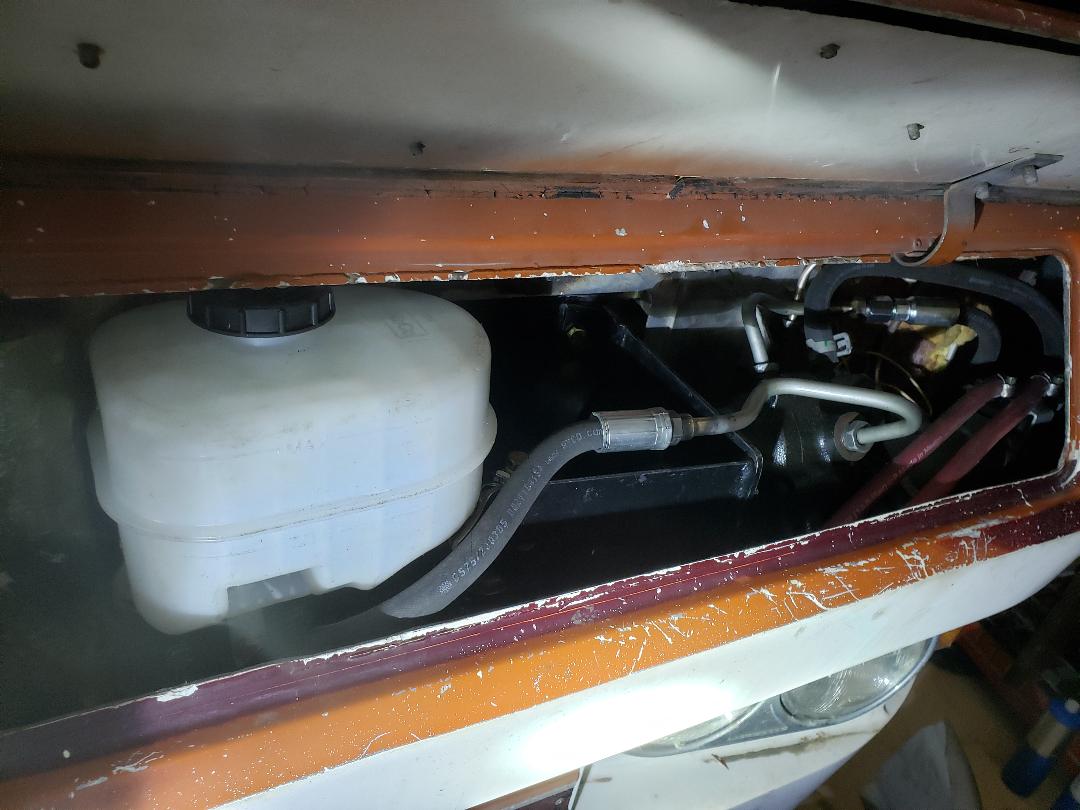

All fits but is really tight. Would make an OEM proud with the difficulty accessing this.

Might have been easier to remove the front cap but making sure everthing fit I thought it needed to go this way.
