Offenhauser dual port intake manifold
Author: B. Sitton (Show all albums)

Pictures of the intake swap to the dual port intake.
Show Newest Photos First | Show Oldest Photos First17 Photos - Page : [1] [2]

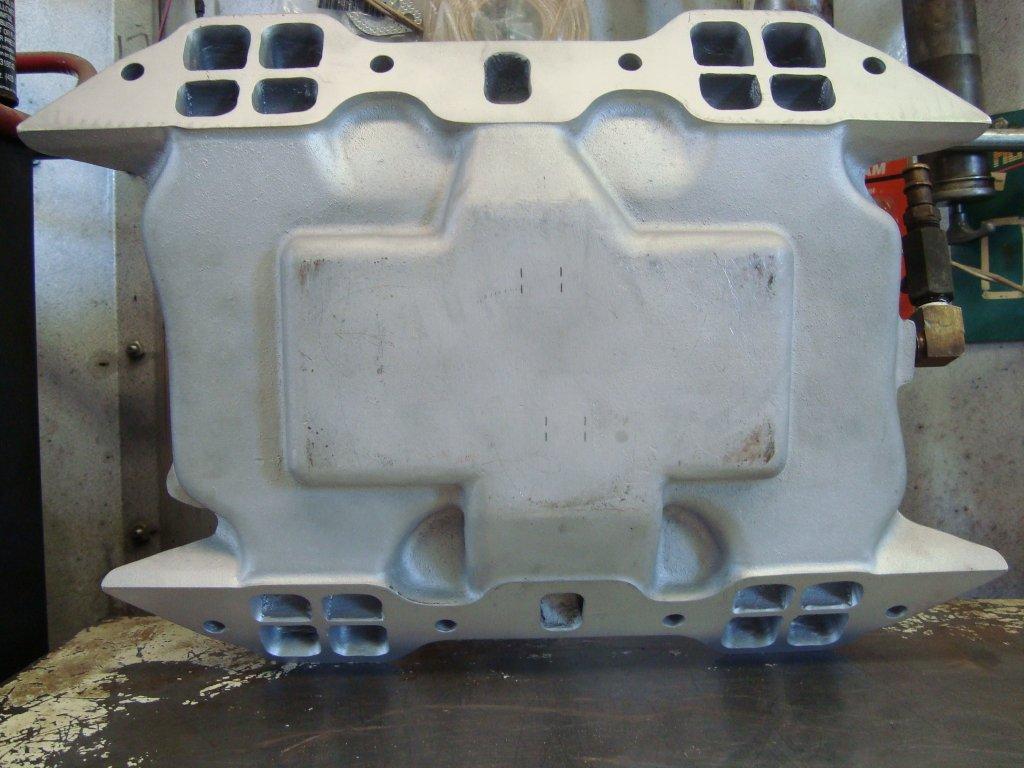

see how the dual port is split. The primaries run in the smaller lower ports and the secondaries run in the larger top ports

and there it is



need to use a separated port gasket

rerouted vacuum lines







gasket shellac around all ports.

Manifold bolts need sealant or they will leak oil onto the manifold. Note only have to remove 20 bolts to make the swap.

rearanged the fittings and rerouted the hoses
