Beau Benji the Beavermobile
Author: borrmann (Show all albums)

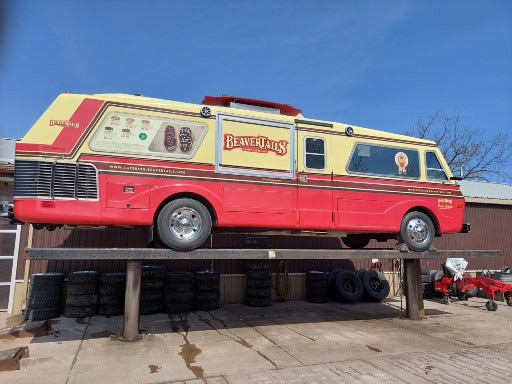

FMC #---, converted to a food truck. I have been doing some maintenance work and posted pictures.
Show Newest Photos First | Show Oldest Photos First11 Photos - Page : [1]

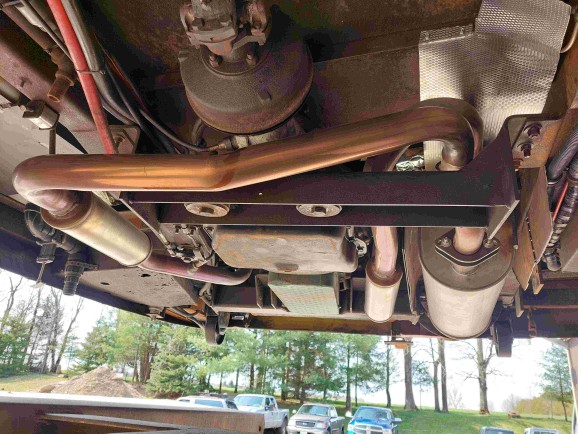

Mounted the muffler in the original location.

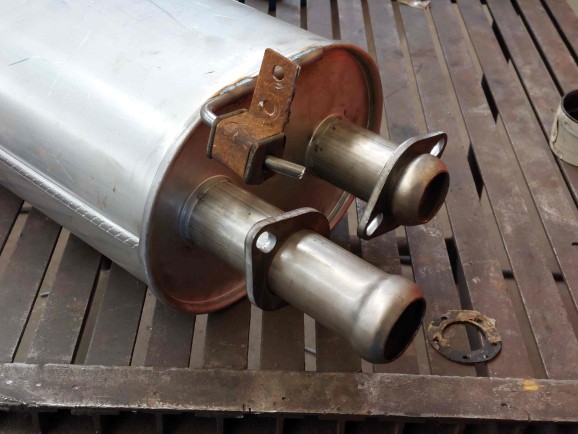

Welded J hooks (3) onto the muffler for hangers.

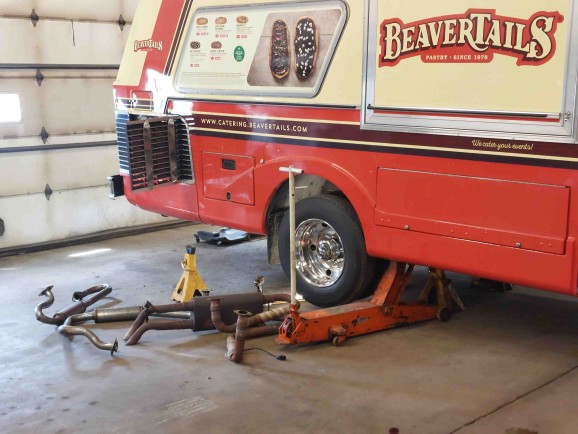

The old system along side the new.




This shows the flow from the passenger side, drivers side is tucked out of the way.

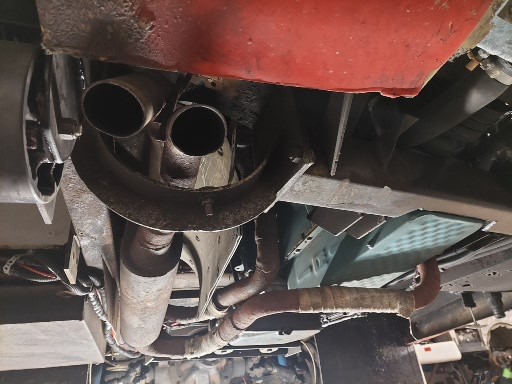

This was the original exhaust, was very close to the oil pan.


Used an AP 2526 muffler, 8.5" x 11.5" oval muffler, two 2-1'4" inlets, one 2-1/2" outlet. Nice quiet muffler. Also used a resonator in each bank, this makes for a very quiet running coach. I used ball connections to allow for quick removal or installation and adjustment for fit.

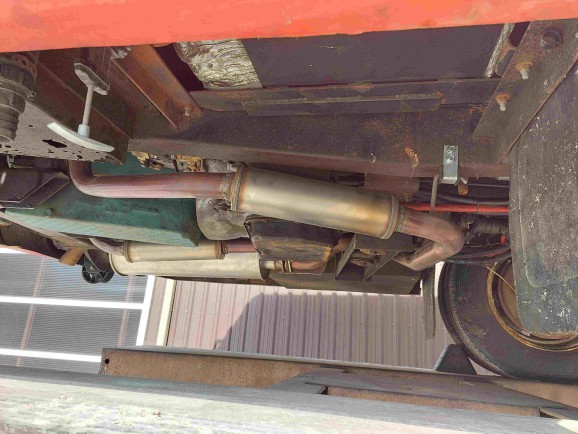

A view of the system that was on the coach.

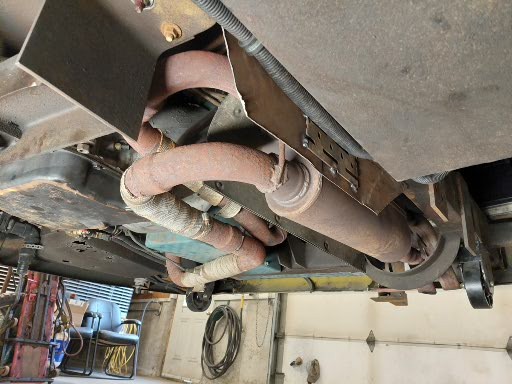

I brought the passenger side down, out along the frame, back behind the transmission and around into the muffler.
