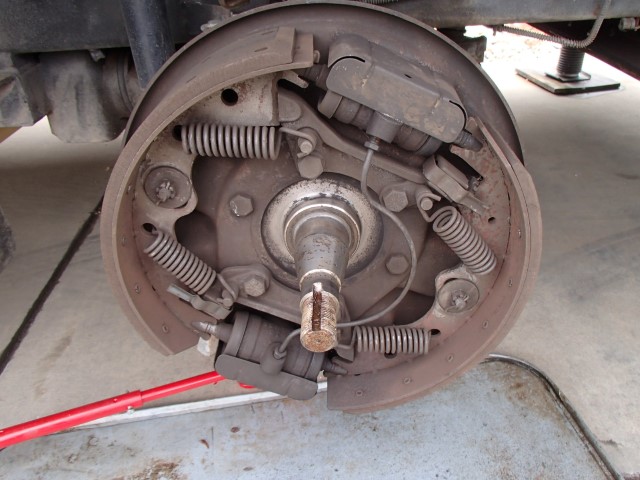

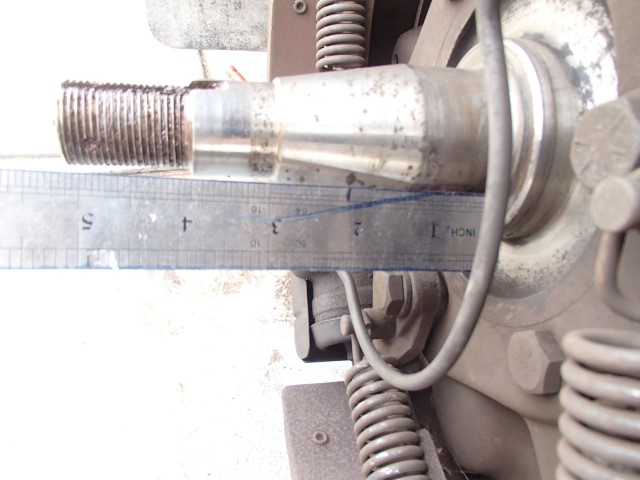

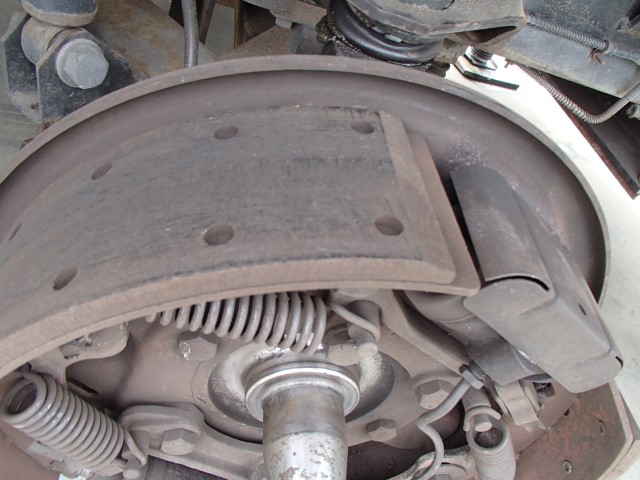

RSS to end of spindle- 5 5/16" Rear seal surface width - 1/2" bearings center to center- 3" spindle outer bearing dia. 1.187" spindle inner bearing dia. 1.875" spindle total to backside of backplate 5 7/8" spindle threaded length- 1 3/8" | just a tiny hint of moisture on the lower cylinder so I'll replace it, not much else to do here | front shoes on passenger side are basically new, I had an old receipt that said the fronts were replaced within 1000miles of when I bought it, looks to be (at least on the passenger side) that it is true. | standard lug nut size on this end |
contains square drive for the stud adapter | p/n 32501 for the wrench and 32318 for the handle, about $60 total on amazon | (2 Comments) lug tools that came with my coach when I bought it, they seam very specific to this application | just a quick turn to knock off the glaze is all that would be needed |
drum was actually in great shape, I could have just had it turned (appears to have never been turned before) as it has no heavy gouging. Drum outer diameter widest 16 3/8" | rear lug and stud adapter set up for alcoas | axle shaft diameter 1.5" axle spline count 34 inner bearing spindle dia. 2.623" outer bearing spindle dia. 2.250" | rear seal land width 7/8" inner to outer bearing center to center width 4 1/8" total spindle/axle to backside of backplate length 11 3/4" |
